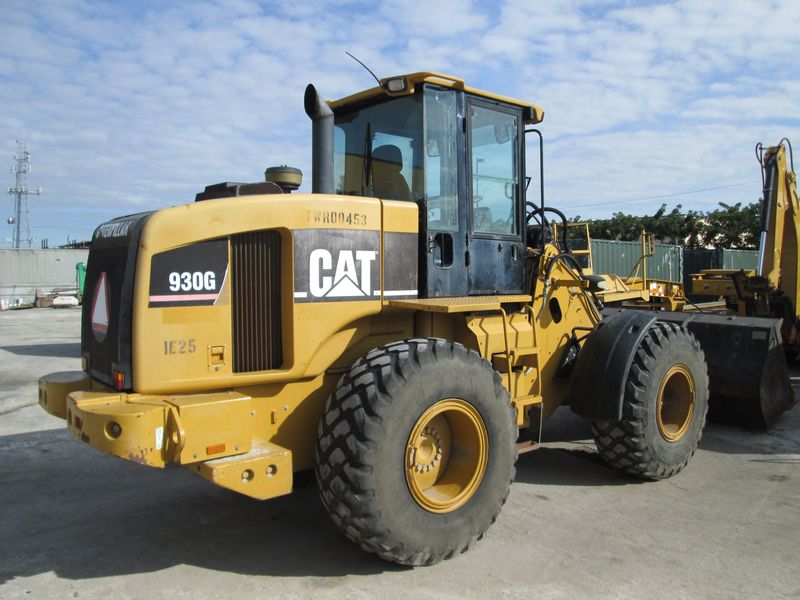

Caterpillar 930G
Browse All Caterpillar or Wheel Loader Models
Contents:
Dimensions
| Ground Clearance | 1.39 ft in (421 mm) |
| Length With Bucket On Ground | 25.85 ft in (7877 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
Engine
| Number Of Cylinders | 1 |
| Engine Make | Caterpillar |
| Engine Model | 3056E DIT |
| Net Power | 150.2 hp (112 kw) |
| Gross Power | 161 hp (120 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 80 |
| Displacement | 366.2 cu in (6 L) |
| Bore | 4 in (100 mm) |
| Stroke | 5 in (127 mm) |
Operational
| Operating Weight | 29039.3 lb (13172 kg) |
| Fuel Capacity | 59.5 gal (225 L) |
| Hydraulic System Fluid Capacity | 33.1 gal (125 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Transmission Fluid Capacity | 9.2 gal (34.5 L) |
| Front Axle/Diff Fluid Capacity | 6.9 gal (26 L) |
| Rear Axle/Diff Fluid Capacity | 6.7 gal (25 L) |
| Turning Radius | 17.3 ft in (5257 mm) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 38 mph (61.2 km/h) |
| Max Speed - Reverse | 24 mph (38.7 km/h) |
