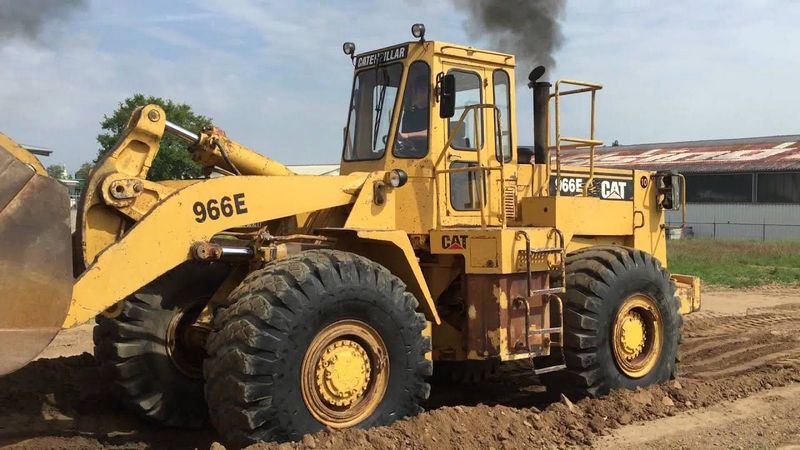

Caterpillar 966E
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.76 ft in (2973 mm) |
| Bucket Capacity - Heaped | 4.71 yd3 (3.6 m3) |
| Bucket Capacity - Struck | 4.18 yd3 (3.19 m3) |
| Bucket Width | 10.04 ft in (3059 mm) |
| Breakout Force | 41918 lb (41918 -) |
Dimensions
| Ground Clearance | 1.65 ft in (501 mm) |
| Length With Bucket On Ground | 26.92 ft in (8203 mm) |
| Width Over Tires | 9.81 ft in (2990 mm) |
| Height To Top Of Cab | 11.75 ft in (3580 mm) |
| Wheelbase | 11 ft in (3350 mm) |
| Hinge Pin - Max Height | 1.51 ft in (459 mm) |
| Reach At Max Lift And Dump | 4.22 ft in (1285 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3306 |
| Gross Power | 216 hp (161 kw) |
| Displacement | 640.8 cu in (10.5 L) |
Operational
| Operating Weight | 44551.1 lb (20208 kg) |
| Fuel Capacity | 80.4 gal (304 L) |
| Hydraulic System Fluid Capacity | 54.2 gal (205 L) |
| Static Tipping Weight | 30547.3 lb (13856 kg) |
| Turning Radius | 23.4 ft in (7104 mm) |
| Tire Size | 26.5-25 14PR |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23.8 mph (38.2 km/h) |
| Max Speed - Reverse | 27.1 mph (43.6 km/h) |
Hydraulic System
| Raise Time | 7.1 sec |
| Dump Time | 2 sec |
| Lower Time | 2.4 sec |
