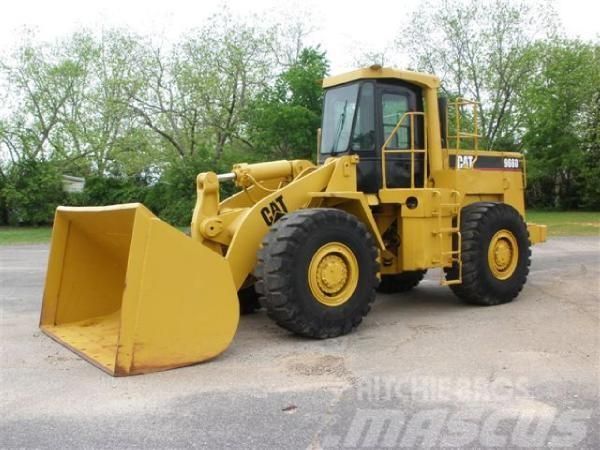

Caterpillar 966D
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.91 ft in (3018 mm) |
| Bucket Capacity - Heaped | 4.06 yd3 (3.1 m3) |
| Bucket Capacity - Struck | 3.41 yd3 (2.6 m3) |
| Bucket Width | 9.98 ft in (3040 mm) |
| Breakout Force | _ - (216 kN) |
Dimensions
| Ground Clearance | 1.48 ft in (451 mm) |
| Length With Bucket On Ground | 25.64 ft in (7814 mm) |
| Width Over Tires | 9.4 ft in (2865 mm) |
| Height To Top Of Cab | 11.68 ft in (3560 mm) |
| Wheelbase | 11 ft in (3350 mm) |
| Hinge Pin - Max Height | 1.84 ft in (560 mm) |
| Reach At Max Lift And Dump | 3.58 ft in (1090 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3306 |
| Net Power | 199.9 hp (149 kw) |
| Displacement | 640.8 cu in (10.5 L) |
Operational
| Operating Weight | 43001.2 lb (19505 kg) |
| Fuel Capacity | 81.4 gal (308 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Static Tipping Weight | 30366.5 lb (13774 kg) |
| Turning Radius | 24.1 ft in (7320 mm) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.4 mph (34.3 km/h) |
| Max Speed - Reverse | 23.7 mph (38.1 km/h) |
Hydraulic System
| Raise Time | 6.3 sec |
| Dump Time | 2 sec |
| Lower Time | 3 sec |
