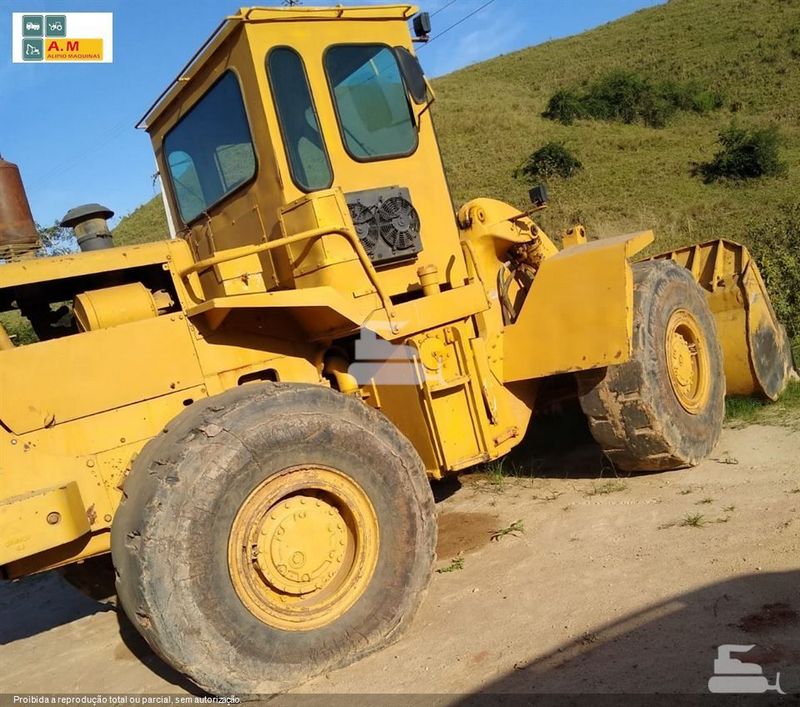

Caterpillar 966R
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.71 ft in (2959 mm) |
| Bucket Capacity - Heaped | 4.06 yd3 (3.1 m3) |
| Bucket Capacity - Struck | 3.43 yd3 (2.62 m3) |
| Bucket Width | 9.59 ft in (2921 mm) |
| Breakout Force | 25910 lb (25910 -) |
Dimensions
| Ground Clearance | 1.31 ft in (399 mm) |
| Length With Bucket On Ground | 22.59 ft in (6883 mm) |
| Width Over Tires | 9.09 ft in (2770 mm) |
| Height To Top Of Cab | 10.77 ft in (3280 mm) |
| Wheelbase | 10.18 ft in (3100 mm) |
| Hinge Pin - Max Height | 13.1 ft in (3990 mm) |
| Reach At Max Lift And Dump | 3.26 ft in (991 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3306 |
| Gross Power | 170.4 hp (127 kw) |
| Displacement | 640.8 cu in (10.5 L) |
Operational
| Operating Weight | 36890 lb (16733 kg) |
| Fuel Capacity | 65 gal (246 L) |
| Hydraulic System Fluid Capacity | 52.1 gal (197 L) |
| Static Tipping Weight | 27941.4 lb (12674 kg) |
| Turning Radius | 22.3 ft in (6782 mm) |
| Tire Size | 23.5-25 |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.7 mph (34.9 km/h) |
| Max Speed - Reverse | 24.2 mph (38.9 km/h) |
Hydraulic System
| Raise Time | 6.2 sec |
| Dump Time | 1.6 sec |
| Lower Time | 3.8 sec |
