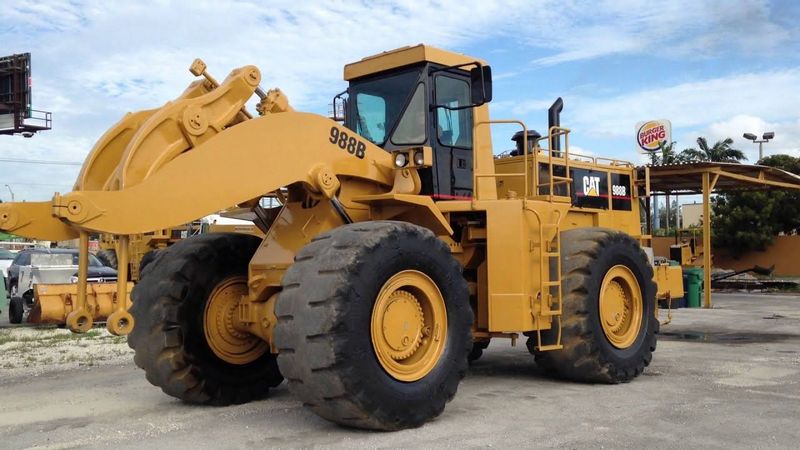

Caterpillar 988B
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 11.32 ft in (3450 mm) |
| Breakout Force | 80100 lb (356.31 kN) |
| Bucket Capacity - Heaped | 7.07 yd3 (5.4 m3) |
| Bucket Capacity - Struck | 5.89 yd3 (4.5 m3) |
Dimensions
| Ground Clearance | 1.56 ft in (474 mm) |
| Length With Bucket On Ground | 34.09 ft in (10390 mm) |
| Width Over Tires | 11.55 ft in (3520 mm) |
| Height To Top Of Cab | 13.51 ft in (4115 mm) |
| Reach At Max Lift And Dump | 7.06 ft in (2150 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3408 |
| Gross Power | 375 hp (279.7 kw) |
| Displacement | 1098.5 cu in (18 L) |
Operational
| Operating Weight | 95603.5 lb (43365 kg) |
| Fuel Capacity | 165.2 gal (625 L) |
| Hydraulic System Fluid Capacity | 65 gal (246 L) |
| Static Tipping Weight | 49493.8 lb (22450 kg) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.5 mph (36.2 km/h) |
| Max Speed - Reverse | 25.8 mph (41.4 km/h) |
Hydraulic System
| Raise Time | 9.4 sec |
| Dump Time | 3 sec |
| Lower Time | 4.5 sec |
