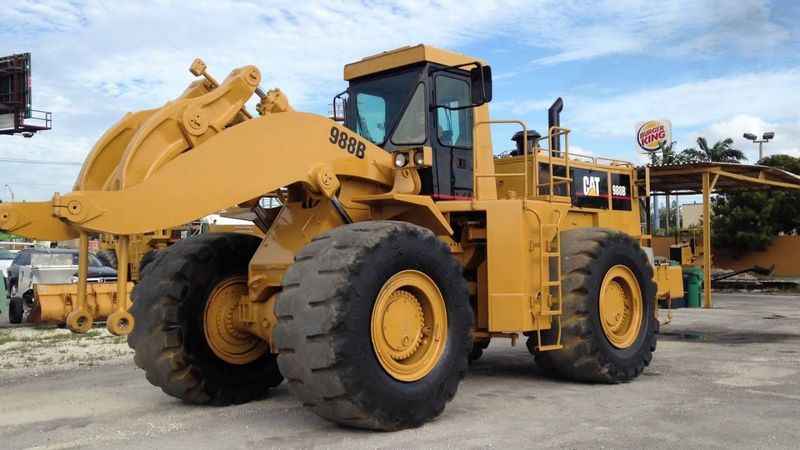

Caterpillar 988F Series II
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.56 ft in (3218 mm) |
| Breakout Force | 82282 lb (366.01 kN) |
| Bucket Capacity - Heaped | 6.6 yd3 (5.04 m3) |
| Bucket Capacity - Struck | 4.06 yd3 (3.1 m3) |
| Bucket Width | 12.38 ft in (3772 mm) |
Dimensions
| Ground Clearance | 1.63 ft in (496 mm) |
| Length With Bucket On Ground | 35.86 ft in (10928 mm) |
| Width Over Tires | 11.55 ft in (3520 mm) |
| Height To Top Of Cab | 13.51 ft in (4115 mm) |
| Reach At Max Lift And Dump | 5.29 ft in (1611 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3408E TA |
| Gross Power | 675 hp (503.4 kw) |
| Displacement | 1098.5 cu in (18 L) |
| Engine Model | Cat 3408E |
Operational
| Operating Weight | 100702.8 lb (45678 kg) |
| Fuel Capacity | 174.1 gal (659 L) |
| Hydraulic System Fluid Capacity | 78 gal (295 L) |
| Static Tipping Weight | 67889.2 lb (30794 kg) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.9 mph (35.1 km/h) |
| Max Speed - Reverse | 14.7 mph (23.5 km/h) |
Buckets
| Maximum Bucket Capacity | 9 yd3 (6.9 m3) |
Hydraulic System
| Raise Time | 7.9 sec |
| Dump Time | 3.3 sec |
| Lower Time | 4 sec |
Operating Specifications
| Static Tipping Load - Full Turn | 80432 lb (36483.4 kg) |
| Dump Clearance | 13.9 ft in (4.3 m) |
| Breakout Force | 129661 lb (58813.3 kg) |
| Travel Speed | 14 mph (22.6 km/h) |
Service Refill Capacities
| Fuel Tank | 252 gal (954 L) |
Hydraulic Cycle Times
| Raise | 7.9 s |
| Lower Float Down - Empty | 4 s |
