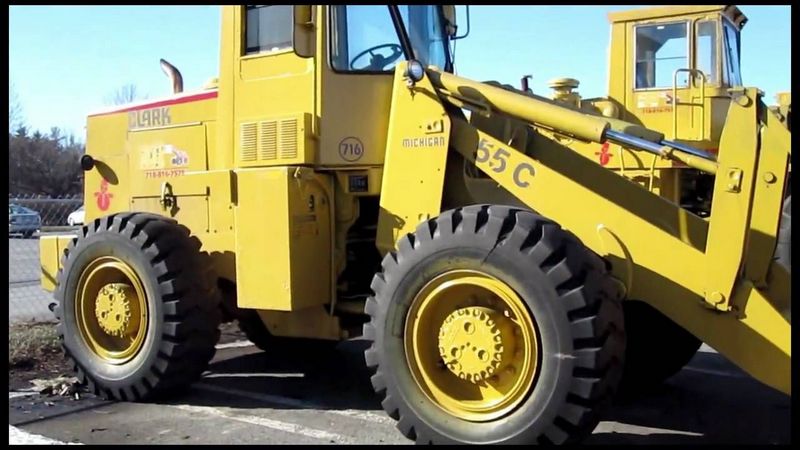

Clark Michigan 55C
Browse All Clark Michigan or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.23 ft in (2813 mm) |
| Bucket Capacity - Heaped | 1.97 yd3 (1.5 m3) |
| Bucket Capacity - Struck | 1.71 yd3 (1.3 m3) |
| Bucket Width | 8.21 ft in (2500 mm) |
| Breakout Force | _ - (81.45 kN) |
Dimensions
| Ground Clearance | 1.24 ft in (375 mm) |
| Length With Bucket On Ground | 21.84 ft in (6654 mm) |
| Width Over Tires | 7.4 ft in (2255 mm) |
| Height To Top Of Cab | 10.08 ft in (3070 mm) |
| Wheelbase | 8.99 ft in (2740 mm) |
| Hinge Pin - Max Height | 12 ft in (3655 mm) |
| Reach At Max Lift And Dump | 3.02 ft in (919 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | V-378C |
| Net Power | 115.4 hp (86 kw) |
| Gross Power | 123.4 hp (92 kw) |
| Max Torque | 280.3 lb ft (380 Nm) |
| Displacement | 378.4 cu in (6.2 L) |
Operational
| Operating Weight | 23708.6 lb (10754 kg) |
| Fuel Capacity | 39.9 gal (151 L) |
| Hydraulic System Fluid Capacity | 31.8 gal (120 L) |
| Engine Oil Fluid Capacity | 3.7 gal (14 L) |
| Cooling System Fluid Capacity | 9.6 gal (36 L) |
| Transmission Fluid Capacity | 5 gal (18.9 L) |
| Front Axle/Diff Fluid Capacity | 3 gal (11 L) |
| Rear Axle/Diff Fluid Capacity | 3 gal (11 L) |
| Static Tipping Weight | 171.3 lb (77.7 kg) |
| Turning Radius | 19.2 ft in (5850 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 18 degrees |
| Tire Size | 17.5-25 |
Transmission
| Transmission Type | Clark countershaft powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 17.3 mph (27.7 km/h) |
| Max Speed - Reverse | 17.3 mph (27.7 km/h) |
Hydraulic System
| Relief Valve Setting | 2400 psi (16547.5 kPa) |
| Pump Flow Capacity | 41.6 gal/min (157.2 L/min) |
| Raise Time | 6.5 sec |
| Dump Time | 2 sec |
| Lower Time | 3.5 sec |
| Pump Type | gear type |
