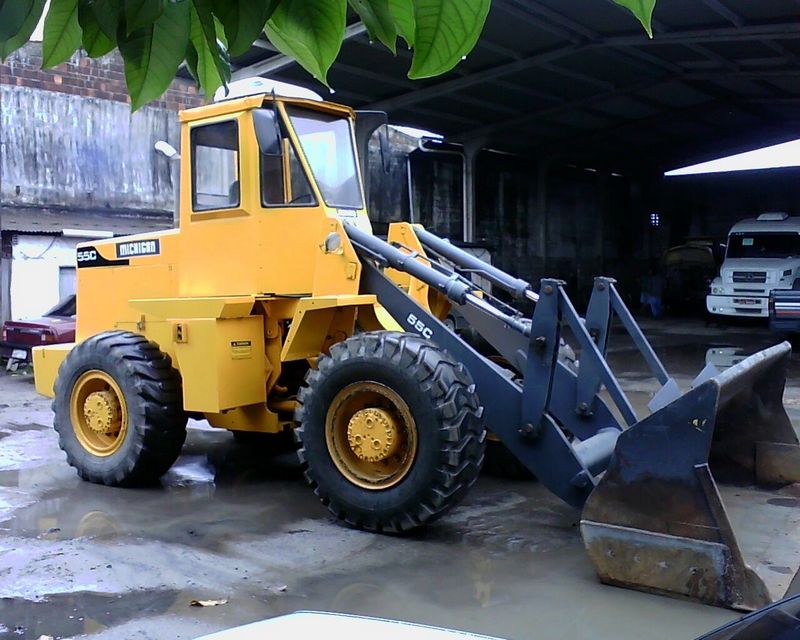

Michigan 55C-I
Browse All Michigan or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.4 ft in (2865 mm) |
| Bucket Capacity - Heaped | 2.01 yd3 (1.53 m3) |
| Bucket Capacity - Struck | 1.71 yd3 (1.3 m3) |
| Bucket Width | 8.09 ft in (2464 mm) |
| Breakout Force | 20050.71 lb (89.19 kN) |
Dimensions
| Ground Clearance | 1.25 ft in (380 mm) |
| Length With Bucket On Ground | 21.69 ft in (6610 mm) |
| Width Over Tires | 7.62 ft in (2320 mm) |
| Height To Top Of Cab | 10.14 ft in (3090 mm) |
| Wheelbase | 8.67 ft in (2640 mm) |
| Hinge Pin - Max Height | 12.01 ft in (3660 mm) |
| Reach At Max Lift And Dump | 2.91 ft in (884 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2345 |
| Engine Model | OM 366 |
| Net Power | 120 hp (89.5 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 274.4 lb ft (372 Nm) |
| Displacement | 234.4 cu in (3.9 L) |
| Torque Measured @ | 1600 rpm |
| Aspiration | natural |
Operational
| Operating Weight | 24868.2 lb (11280 kg) |
| Fuel Capacity | 41 gal (155 L) |
| Hydraulic System Fluid Capacity | 41 gal (155 L) |
| Engine Oil Fluid Capacity | 3.7 gal (14 L) |
| Cooling System Fluid Capacity | 6.7 gal (25 L) |
| Transmission Fluid Capacity | 6.9 gal (26 L) |
| Front Axle/Diff Fluid Capacity | 3 gal (11 L) |
| Rear Axle/Diff Fluid Capacity | 3 gal (11 L) |
| Static Tipping Weight | 16955.8 lb (7691 kg) |
| Turning Radius | 19.7 ft in (5975 mm) |
| Operating Voltage | 24 V |
| Tire Size | 17.5-25 |
Transmission
| Transmission Type | clark |
| Max Speed - Forward | 18.7 mph (30 km/h) |
| Max Speed - Reverse | 18.7 mph (30 km/h) |
