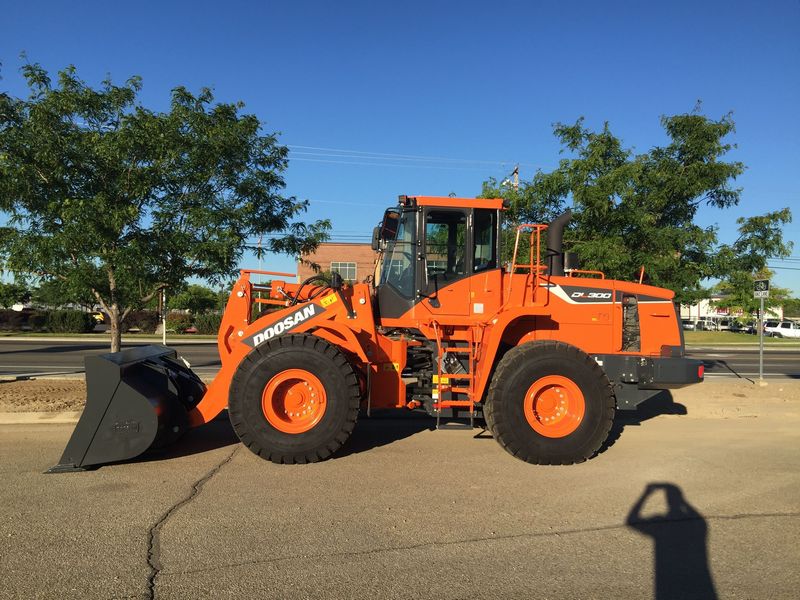

Doosan DL300
Browse All Doosan or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.13 ft in (2780 mm) |
| Bucket Capacity - Heaped | 3.93 yd3 (3 m3) |
| Bucket Width | 9.59 ft in (2920 mm) |
| Breakout Force | 36419 lb (36419 -) |
Dimensions
| Ground Clearance | 1.55 ft in (470 mm) |
| Length With Bucket On Ground | 26.74 ft in (8150 mm) |
| Width Over Tires | 9.06 ft in (2760 mm) |
| Height To Top Of Cab | 11.28 ft in (3438 mm) |
| Wheelbase | 10.5 ft in (3200 mm) |
| Hinge Pin - Max Height | 13.13 ft in (4000 mm) |
| Reach At Max Lift And Dump | 9.13 ft in (2780 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2252 |
| Engine Model | DL08 |
| Net Power | 217 hp (161.9 kw) |
| Gross Power | 227 hp (169.3 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 759 lb ft (1029 Nm) |
| Displacement | 466 cu in (7.7 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | turbo charged air to air intercooler |
Operational
| Operating Weight | 38140 lb (17300.1 kg) |
| Fuel Capacity | 87.2 gal (330 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Engine Oil Fluid Capacity | 9.3 gal (35 L) |
| Cooling System Fluid Capacity | 13.3 gal (50 L) |
| Transmission Fluid Capacity | 12.7 gal (48 L) |
| Front Axle/Diff Fluid Capacity | 10.1 gal (38 L) |
| Rear Axle/Diff Fluid Capacity | 8 gal (30 L) |
| Static Tipping Weight | 31967 lb (14500 kg) |
| Turning Radius | 20.9 ft in (6360 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 23.5-25-16PR-L3 |
Transmission
| Transmission Type | full power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
| Max Speed - Reverse | 14.8 mph (23.8 km/h) |
Hydraulic System
| Relief Valve Setting | 2900.8 psi (20000 kPa) |
| Pump Flow Capacity | 74 gal/min (280 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 1.9 sec |
| Lower Time | 3.7 sec |
| Pump Type | tandem vane pump |
