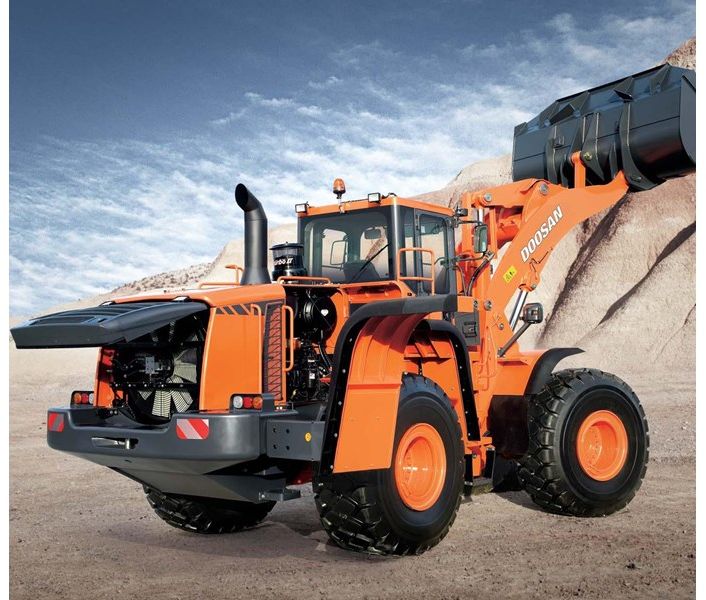

Doosan DL400
Browse All Doosan or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.77 ft in (2975 mm) |
| Bucket Capacity - Heaped | 5.11 yd3 (3.9 m3) |
| Bucket Width | 10.5 ft in (3200 mm) |
| Breakout Force | 49458 lb (49458 -) |
Dimensions
| Ground Clearance | 1.68 ft in (510 mm) |
| Length With Bucket On Ground | 28.58 ft in (8710 mm) |
| Width Over Tires | 9.8 ft in (2985 mm) |
| Height To Top Of Cab | 11.56 ft in (3522 mm) |
| Wheelbase | 11.49 ft in (3500 mm) |
| Hinge Pin - Max Height | 14.28 ft in (4350 mm) |
| Reach At Max Lift And Dump | 9.77 ft in (2975 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSL 9 |
| Net Power | 280 hp (208.8 kw) |
| Gross Power | 310 hp (231.2 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 1070.3 lb ft (1451 Nm) |
| Displacement | 543 cu in (8.9 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbo charged air to air intercooler |
Operational
| Fuel Capacity | 96.5 gal (365 L) |
| Hydraulic System Fluid Capacity | 70.1 gal (265 L) |
| Engine Oil Fluid Capacity | 6.7 gal (25 L) |
| Cooling System Fluid Capacity | 13.3 gal (50 L) |
| Transmission Fluid Capacity | 14.3 gal (54 L) |
| Front Axle/Diff Fluid Capacity | 11.9 gal (45 L) |
| Rear Axle/Diff Fluid Capacity | 11.1 gal (42 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 26.5-25-20PR-L3 |
Transmission
| Transmission Type | full power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.7 mph (38 km/h) |
| Max Speed - Reverse | 17.4 mph (28 km/h) |
Hydraulic System
| Relief Valve Setting | 3626 psi (25000 kPa) |
| Pump Flow Capacity | 100.4 gal/min (380 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3 sec |
| Pump Type | axial piston pump |
