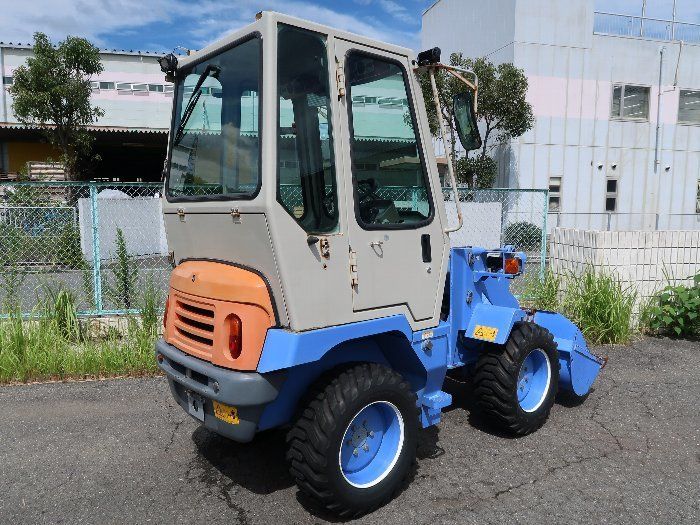

Hitachi LX15-7
Browse All Hitachi or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 6.08 ft in (1850 mm) |
| Bucket Capacity - Heaped | 0.4 yd3 (0.3 m3) |
| Bucket Capacity - Struck | 0.32 yd3 (0.24 m3) |
| Bucket Width | 4.42 ft in (1350 mm) |
| Breakout Force | 4630 lb (21 kN) |
Dimensions
| Ground Clearance | 0.71 ft in (215 mm) |
| Length With Bucket On Ground | 11.29 ft in (3440 mm) |
| Width Over Tires | 4.38 ft in (1335 mm) |
| Height To Top Of Cab | 7.86 ft in (2395 mm) |
| Wheelbase | 4.93 ft in (1500 mm) |
| Hinge Pin - Max Height | 7.67 ft in (2335 mm) |
| Reach At Max Lift And Dump | 1.88 ft in (570 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2334 |
| Engine Model | D1105-K2A |
| Net Power | 22 hp (16.2 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 68.6 cu in (1.2 L) |
Operational
| Operating Weight | 4221.9 lb (1915 kg) |
| Fuel Capacity | 8.8 gal (33 L) |
| Hydraulic System Fluid Capacity | 6.7 gal (25 L) |
| Engine Oil Fluid Capacity | 1.5 gal (5.6 L) |
| Cooling System Fluid Capacity | 1.5 gal (5.5 L) |
| Front Axle/Diff Fluid Capacity | 1 gal (3.5 L) |
| Rear Axle/Diff Fluid Capacity | 1 gal (3.5 L) |
| Static Tipping Weight | 2976.3 lb (1350 kg) |
| Turning Radius | 8.4 ft in (2545 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Rear Axle Oscillation | 16 degrees |
| Tire Size | 10-16.5-4PR (L2) |
Transmission
| Transmission Type | Hydrostatic transmission automatically controls power and speed with electrically controlled |
| Max Speed - Forward | 9.3 mph (15 km/h) |
| Max Speed - Reverse | 9.3 mph (15 km/h) |
Hydraulic System
| Relief Valve Setting | 2987.8 psi (20600 kPa) |
| Pump Flow Capacity | 6.1 gal/min (23 L/min) |
| Raise Time | 4.6 sec |
| Dump Time | 1 sec |
| Lower Time | 3.2 sec |
| Pump Type | gear type |
