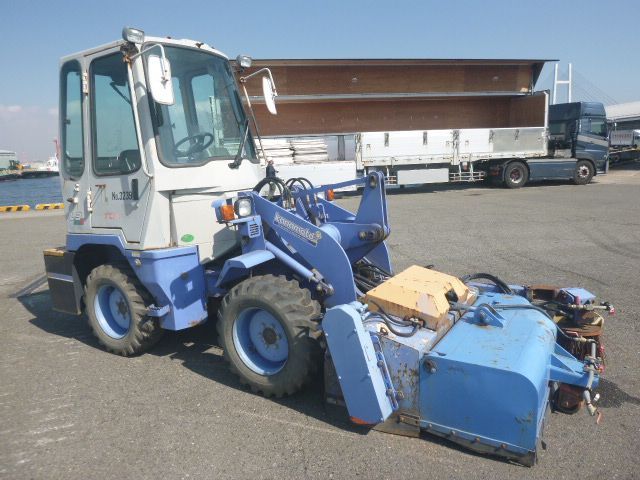

TCM L3-2
Browse All TCM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 6.07 ft in (1850 mm) |
| Bucket Capacity - Heaped | 0.4 yd3 (0.3 m3) |
| Bucket Width | 4.43 ft in (1350 mm) |
| Breakout Force | _ - (20.6 kN) |
Dimensions
| Length With Bucket On Ground | 11.29 ft in (3440 mm) |
| Height To Top Of Cab | 7.71 ft in (2350 mm) |
| Wheelbase | 4.93 ft in (1500 mm) |
| Reach At Max Lift And Dump | 1.88 ft in (570 mm) |
Engine
| Engine Make | 2334 |
| Engine Model | D1105-K2A |
| Net Power | 21.8 hp (16.2 kw) |
Operational
| Operating Weight | 4221.9 lb (1915 kg) |
| Fuel Capacity | 8.8 gal (33 L) |
| Static Tipping Weight | 2976.3 lb (1350 kg) |
| Tire Size | 10-16, 70-16 -6PRL2 |
Transmission
| Transmission Type | powershift |
| Max Speed - Forward | 9.4 mph (15 km/h) |
| Max Speed - Reverse | 9.4 mph (15 km/h) |
