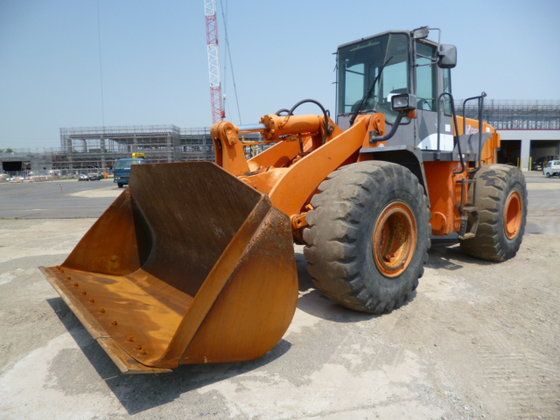

Hitachi LX160-7
Browse All Hitachi or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.44 ft in (2875 mm) |
| Bucket Capacity - Heaped | 4.19 yd3 (3.2 m3) |
| Bucket Width | 9.55 ft in (2910 mm) |
| Breakout Force | 34620.58 lb (154 kN) |
Dimensions
| Ground Clearance | 1.55 ft in (470 mm) |
| Length With Bucket On Ground | 26.51 ft in (8080 mm) |
| Width Over Tires | 9.22 ft in (2810 mm) |
| Height To Top Of Cab | 10.85 ft in (3305 mm) |
| Wheelbase | 10.67 ft in (3250 mm) |
| Hinge Pin - Max Height | 13.26 ft in (4040 mm) |
| Reach At Max Lift And Dump | 3.88 ft in (1180 mm) |
Engine
| Engine Make | 2353 |
| Engine Model | BB-6HK1T |
| Net Power | 192 hp (143.2 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 475.4 cu in (7.8 L) |
Operational
| Operating Weight | 37633 lb (17070 kg) |
| Fuel Capacity | 63.5 gal (240 L) |
| Turning Radius | 18.3 ft in (5560 mm) |
| Tire Size | 23.5-25-16PR L3 |
Transmission
| Transmission Type | 4-speed full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
| Max Speed - Reverse | 23 mph (37 km/h) |
Hydraulic System
| Raise Time | 6 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.3 sec |
