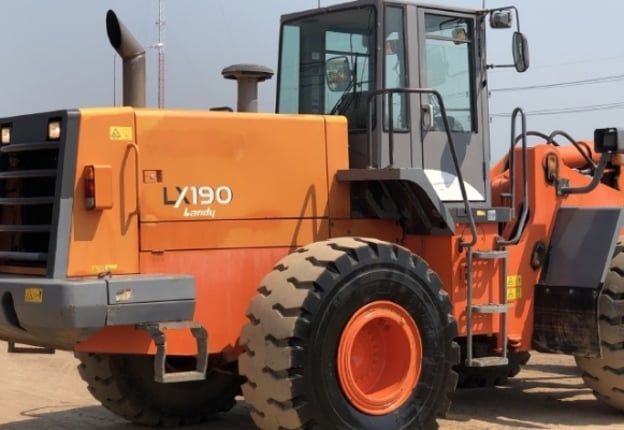

Hitachi LX190-7
Browse All Hitachi or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.8 ft in (2985 mm) |
| Bucket Capacity - Heaped | 4.58 yd3 (3.5 m3) |
| Bucket Width | 10.01 ft in (3050 mm) |
| Breakout Force | 37318.29 lb (166 kN) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Length With Bucket On Ground | 27.92 ft in (8510 mm) |
| Width Over Tires | 9.62 ft in (2930 mm) |
| Height To Top Of Cab | 11.19 ft in (3410 mm) |
| Wheelbase | 11.16 ft in (3400 mm) |
| Hinge Pin - Max Height | 13.72 ft in (4180 mm) |
| Reach At Max Lift And Dump | 3.73 ft in (1135 mm) |
Engine
| Engine Make | 2251 |
| Engine Model | 6D24TL |
| Net Power | 222 hp (165.6 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 729 cu in (12 L) |
Operational
| Operating Weight | 43585.4 lb (19770 kg) |
| Fuel Capacity | 97.8 gal (370 L) |
| Turning Radius | 19.1 ft in (5820 mm) |
| Tire Size | 23.5-25-16PR L3 |
Transmission
| Transmission Type | 4-speed full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
| Max Speed - Reverse | 23 mph (37 km/h) |
Hydraulic System
| Raise Time | 6.2 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.3 sec |
