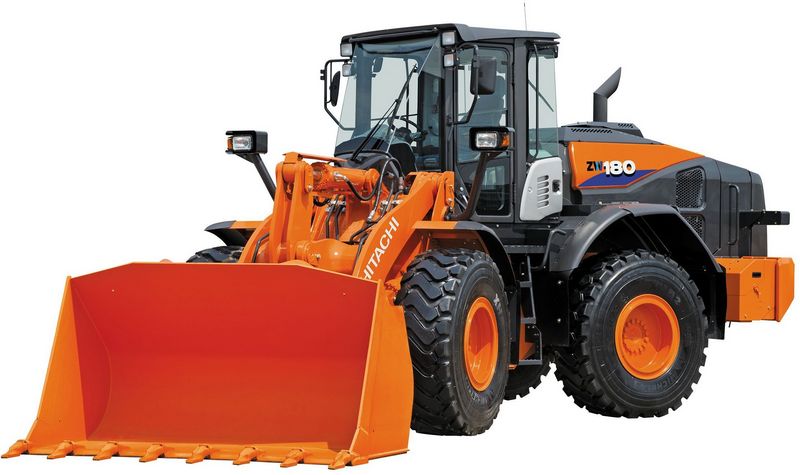

Hitachi ZW180
Browse All Hitachi or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.16 ft in (2790 mm) |
| Bucket Capacity - Heaped | 3.67 yd3 (2.8 m3) |
| Bucket Capacity - Struck | 3.14 yd3 (2.4 m3) |
| Bucket Width | 8.83 ft in (2690 mm) |
| Breakout Force | 26752.27 lb (119 kN) |
Dimensions
| Ground Clearance | 1.3 ft in (395 mm) |
| Length With Bucket On Ground | 24.97 ft in (7610 mm) |
| Width Over Tires | 8.57 ft in (2610 mm) |
| Height To Top Of Cab | 10.77 ft in (3280 mm) |
| Wheelbase | 10.01 ft in (3050 mm) |
| Hinge Pin - Max Height | 12.87 ft in (3920 mm) |
| Reach At Max Lift And Dump | 3.52 ft in (1070 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB6.7 |
| Gross Power | 171 hp (128 kw) |
| Displacement | 408.3 cu in (6.7 L) |
| Aspiration | Turbocharger & charge air cooled |
Operational
| Operating Weight | 31482.1 lb (14280 kg) |
| Fuel Capacity | 60.8 gal (230 L) |
| Hydraulic System Fluid Capacity | 26.5 gal (100 L) |
| Engine Oil Fluid Capacity | 6.7 gal (25 L) |
| Cooling System Fluid Capacity | 6.9 gal (26 L) |
| Transmission Fluid Capacity | 8 gal (30 L) |
| Front Axle/Diff Fluid Capacity | 7.4 gal (28 L) |
| Rear Axle/Diff Fluid Capacity | 7.4 gal (28 L) |
| Static Tipping Weight | 25309.1 lb (11480 kg) |
| Turning Radius | 17.2 ft in (5230 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 65 amps |
| Tire Size | 20.5-25-12PR (L3) |
Transmission
| Transmission Type | Torque converter, countershaft type powershit with computer controlled automatic shift and manual shift features included |
| Max Speed - Forward | 23.7 mph (38 km/h) |
| Max Speed - Reverse | 23.7 mph (38 km/h) |
Hydraulic System
| Raise Time | 5.7 sec |
| Dump Time | 1.2 sec |
| Lower Time | 2.9 sec |
| Pump Type | variable displacement axial plunger |
