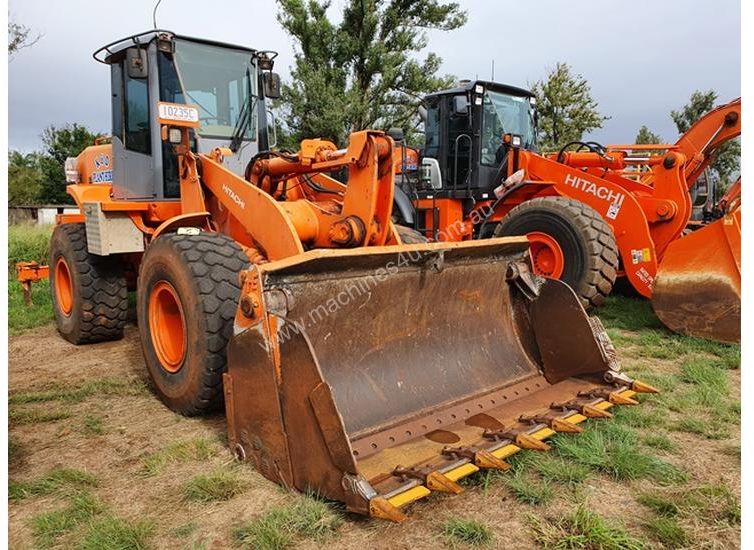

Hitachi LX120 Super
Browse All Hitachi or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.96 ft in (2730 mm) |
| Bucket Capacity - Heaped | 3.01 yd3 (2.3 m3) |
| Bucket Capacity - Struck | 2.63 yd3 (2.01 m3) |
| Breakout Force | 29405.01 lb (130.81 kN) |
Dimensions
| Ground Clearance | 1.43 ft in (435 mm) |
| Length With Bucket On Ground | 24.97 ft in (7610 mm) |
| Width Over Tires | 8.27 ft in (2520 mm) |
| Height To Top Of Cab | 10.83 ft in (3300 mm) |
| Wheelbase | 9.95 ft in (3030 mm) |
| Hinge Pin - Max Height | 12.77 ft in (3890 mm) |
| Reach At Max Lift And Dump | 3.55 ft in (1080 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068T |
| Net Power | 145 hp (108.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 420.5 lb ft (570 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 28025 lb (12712 kg) |
| Fuel Capacity | 65.8 gal (249 L) |
| Hydraulic System Fluid Capacity | 27 gal (102 L) |
| Engine Oil Fluid Capacity | 4.5 gal (17 L) |
| Cooling System Fluid Capacity | 6.7 gal (25 L) |
| Transmission Fluid Capacity | 3 gal (11 L) |
| Front Axle/Diff Fluid Capacity | 6.1 gal (23 L) |
| Rear Axle/Diff Fluid Capacity | 4.3 gal (16 L) |
| Static Tipping Weight | 21155 lb (9595.8 kg) |
| Turning Radius | 19.9 ft in (6060 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 20.5x25 |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23 mph (37.1 km/h) |
| Max Speed - Reverse | 15.2 mph (24.5 km/h) |
Hydraulic System
| Relief Valve Setting | 2800 psi (19305.4 kPa) |
| Pump Flow Capacity | 61.1 gal/min (231 L/min) |
| Raise Time | 5.8 sec |
| Dump Time | 1.7 sec |
| Lower Time | 3.5 sec |
| Pump Type | Gear |
