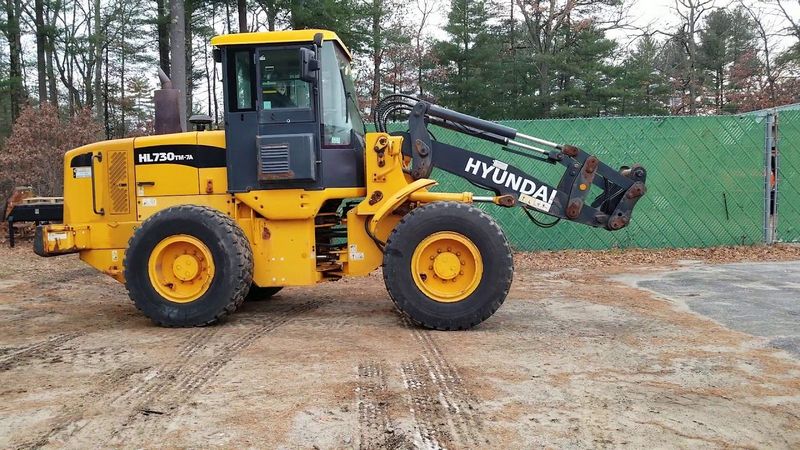

Hyundai HL730TM-7A
Browse All Hyundai or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.14 ft in (2785 mm) |
| Bucket Capacity - Heaped | 2.1 yd3 (1.61 m3) |
| Bucket Capacity - Struck | 1.8 yd3 (1.38 m3) |
| Breakout Force | 22240 lb (22240 -) |
Dimensions
| Ground Clearance | 1.22 ft in (370 mm) |
| Length With Bucket On Ground | 22.97 ft in (7000 mm) |
| Width Over Tires | 7.88 ft in (2400 mm) |
| Height To Top Of Cab | 10.41 ft in (3170 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Hinge Pin - Max Height | 12.41 ft in (3780 mm) |
| Reach At Max Lift And Dump | 3.75 ft in (1140 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB4.5 |
| Net Power | 119 hp (88.8 kw) |
| Gross Power | 125 hp (93.3 kw) |
| Max Torque | 408 lb ft (553.2 Nm) |
| Displacement | 274.7 cu in (4.5 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 10000 lb (4536 kg) |
| Fuel Capacity | 53.4 gal (202 L) |
| Hydraulic System Fluid Capacity | 42.3 gal (160 L) |
| Engine Oil Fluid Capacity | 3 gal (11 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Transmission Fluid Capacity | 5.3 gal (20 L) |
| Front Axle/Diff Fluid Capacity | 4.9 gal (18.4 L) |
| Rear Axle/Diff Fluid Capacity | 4.9 gal (18.4 L) |
| Static Tipping Weight | 14640 lb (6640.6 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 17.5-25 12 PR L3 |
Transmission
| Transmission Type | full automatic powershift, countershaft type |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.4 mph (36 km/h) |
| Max Speed - Reverse | 14.4 mph (23.1 km/h) |
Hydraulic System
| Relief Valve Setting | 2990 psi (20615.4 kPa) |
| Pump Flow Capacity | 37 gal/min (140 L/min) |
| Raise Time | 5.6 sec |
| Dump Time | 1.4 sec |
| Lower Time | 2.8 sec |
| Pump Type | helical gear type |
