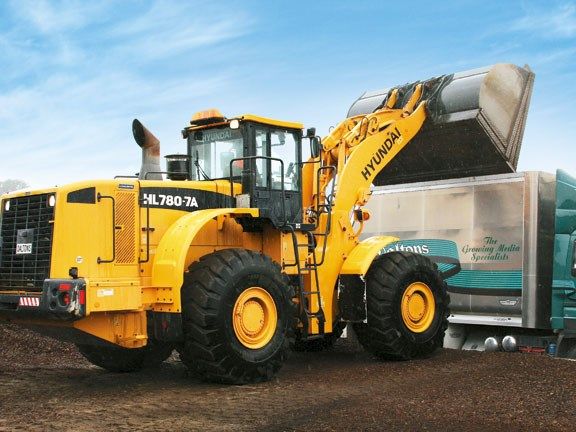

Hyundai HL780-7A
Browse All Hyundai or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.83 ft in (3300 mm) |
| Bucket Capacity - Struck | 5.63 yd3 (4.3 m3) |
| Bucket Width | 11.32 ft in (3450 mm) |
| Bucket Capacity - Heaped | 6.68 yd3 (5.1 m3) |
Dimensions
| Ground Clearance | 1.56 ft in (475 mm) |
| Length With Bucket On Ground | 30.98 ft in (9440 mm) |
| Width Over Tires | 10.57 ft in (3220 mm) |
| Height To Top Of Cab | 12.49 ft in (3805 mm) |
| Wheelbase | 12.14 ft in (3700 mm) |
| Hinge Pin - Max Height | 14.8 ft in (4510 mm) |
| Reach At Max Lift And Dump | 4.48 ft in (1365 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSM11 |
| Net Power | 320 hp (238.7 kw) |
| Gross Power | 335 hp (249.9 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 1235 lb ft (1674.5 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 64595.5 lb (29300 kg) |
| Fuel Capacity | 124.2 gal (470 L) |
| Hydraulic System Fluid Capacity | 95.2 gal (360 L) |
| Engine Oil Fluid Capacity | 10.1 gal (38 L) |
| Cooling System Fluid Capacity | 17.2 gal (65 L) |
| Transmission Fluid Capacity | 11.4 gal (43 L) |
| Front Axle/Diff Fluid Capacity | 15.9 gal (60 L) |
| Rear Axle/Diff Fluid Capacity | 15.9 gal (60 L) |
| Static Tipping Weight | 53197.6 lb (24130 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 29.5-25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.4 mph (34.4 km/h) |
| Max Speed - Reverse | 14.8 mph (23.8 km/h) |
Hydraulic System
| Pump Flow Capacity | 127.4 gal/min (482 L/min) |
| Raise Time | 6.4 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3 sec |
| Pump Type | Vane |
