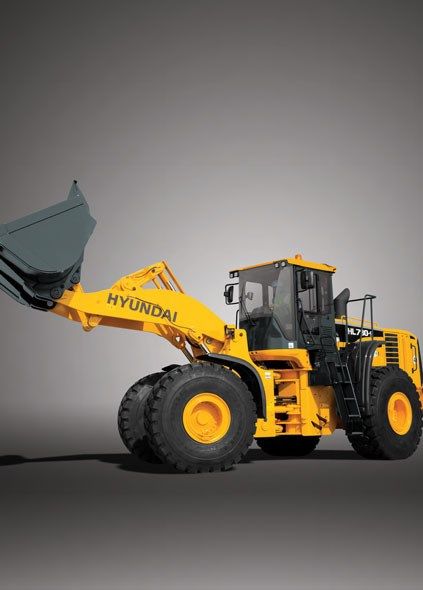

Hyundai HL780-9
Browse All Hyundai or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.83 ft in (3300 mm) |
| Bucket Capacity - Struck | 6.02 yd3 (4.6 m3) |
| Bucket Width | 11.32 ft in (3450 mm) |
| Bucket Capacity - Heaped | 7.07 yd3 (5.4 m3) |
Dimensions
| Ground Clearance | 1.63 ft in (495 mm) |
| Length With Bucket On Ground | 31.6 ft in (9630 mm) |
| Width Over Tires | 10.57 ft in (3220 mm) |
| Height To Top Of Cab | 12.69 ft in (3865 mm) |
| Wheelbase | 12.14 ft in (3700 mm) |
| Hinge Pin - Max Height | 14.97 ft in (4560 mm) |
| Reach At Max Lift And Dump | 4.7 ft in (1430 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSM11 |
| Net Power | 344 hp (256.6 kw) |
| Gross Power | 348 hp (259.6 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 1235 lb ft (1674.5 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 66138.7 lb (30000 kg) |
| Fuel Capacity | 118.9 gal (450 L) |
| Hydraulic System Fluid Capacity | 61.9 gal (234 L) |
| Engine Oil Fluid Capacity | 10.1 gal (38 L) |
| Cooling System Fluid Capacity | 17.2 gal (65 L) |
| Transmission Fluid Capacity | 11.4 gal (43 L) |
| Front Axle/Diff Fluid Capacity | 15.4 gal (58 L) |
| Rear Axle/Diff Fluid Capacity | 15.4 gal (58 L) |
| Static Tipping Weight | 53351.9 lb (24200 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 29.5-25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.7 mph (36.5 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic System
| Pump Flow Capacity | 111 gal/min (420 L/min) |
| Raise Time | 6.1 sec |
| Dump Time | 1.4 sec |
| Lower Time | 4.1 sec |
| Pump Type | Variable Axial Piston |
