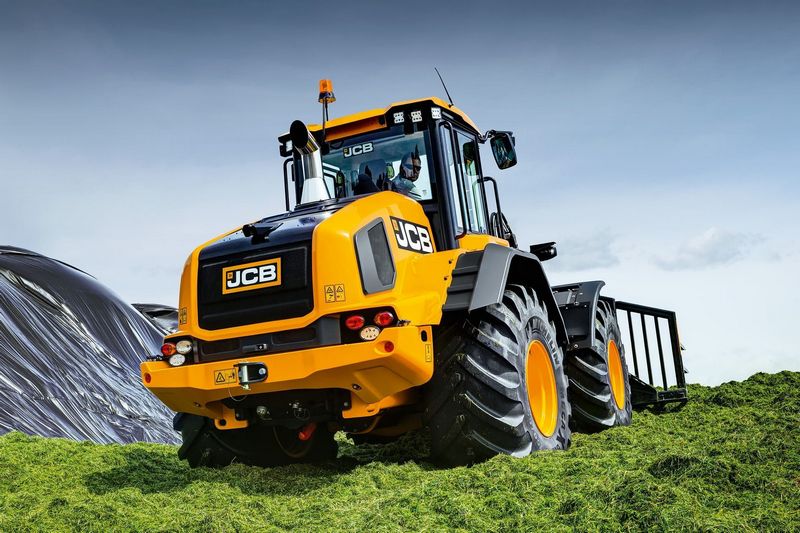

JCB 419S HT HL
Browse All JCB or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.84 ft in (2997 mm) |
| Bucket Capacity - Heaped | 2.1 yd3 (1.6 m3) |
| Bucket Capacity - Struck | 1.78 yd3 (1.36 m3) |
| Bucket Width | 7.88 ft in (2400 mm) |
| Breakout Force | 18434.34 lb (82 kN) |
Dimensions
| Ground Clearance | 1.65 ft in (502 mm) |
| Length With Bucket On Ground | 22.57 ft in (6877 mm) |
| Width Over Tires | 8.78 ft in (2674 mm) |
| Height To Top Of Cab | 10.47 ft in (3191 mm) |
| Wheelbase | 9.36 ft in (2850 mm) |
| Hinge Pin - Max Height | 12.83 ft in (3910 mm) |
| Reach At Max Lift And Dump | 2.95 ft in (897 mm) |
Engine
| Emission Tier Level | EU Stage IV, US EPA Tier 4F |
| Number Of Cylinders | 6 |
| No. Of Valves | 4 |
| Engine Model | QSB |
| Engine Type | Cummins |
| Net Power | 183 hp (136.5 kw) |
| Air Cleaner | Cyclonic pre-filter with engine fan scavenge system |
| Gross Power | 173 hp (129.1 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 841 Nm |
| Displacement | 408.9 cu in (6.7 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbo Charged |
| Fan Drive Type | Hydraulically driven cooling fan |
Operational
| Def Tank Capacity | 6.3 gal (23.8 L) |
| Auxiliary Fuel Tank | 66.1 gal (250 L) |
| Full Turn Tipping Load | 14422.7 lb (6542 kg) |
| Payload | 7211.4 lb (3271 kg) |
| Operating Weight | 23507.9 lb (10663 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Hydraulic System Fluid Capacity | 41 gal (155 L) |
| Turning Radius | 19.2 ft in (5847 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 120 amps |
| Rear Axle Oscillation | 9 degrees |
| Articulation Angle | 38 degrees |
Transmission
| Transmission Type | 6 speed non-lock up converter ZF |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
| Max Speed - Reverse | 20 mph (32.1 km/h) |
Hydraulic System
| Max Operating Pressure | 230 bar |
| Relief Valve Setting | 3190 psi (21994.3 kPa) |
| Pump Flow Capacity | 47.6 gal/min (180 L/min) |
| Raise Time | 3.9 sec |
| Dump Time | 1.6 sec |
| Lower Time | 2.4 sec |
| Total Cycle | 7.8 sec |
| Pump Type | Variable placement |
