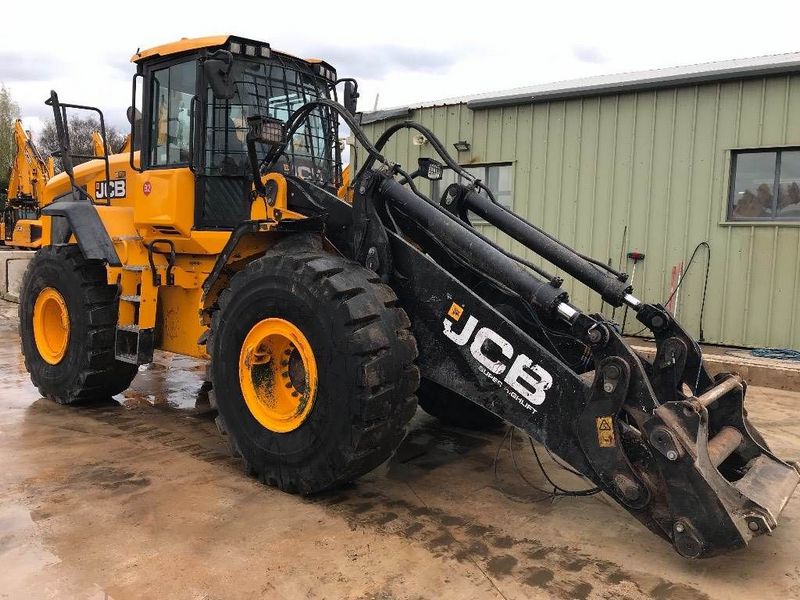

JCB 457 HT SHL
Browse All JCB or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 12.97 ft in (3953 mm) |
| Bucket Capacity - Heaped | 3.67 yd3 (2.8 m3) |
| Bucket Capacity - Struck | 2.9 yd3 (2.21 m3) |
| Bucket Width | 9.31 ft in (2837 mm) |
| Breakout Force | 39341.57 lb (175 kN) |
Dimensions
| Ground Clearance | 1.56 ft in (473 mm) |
| Length With Bucket On Ground | 31.01 ft in (9451 mm) |
| Width Over Tires | 8.86 ft in (2699 mm) |
| Height To Top Of Cab | 11.27 ft in (3433 mm) |
| Wheelbase | 10.83 ft in (3300 mm) |
| Hinge Pin - Max Height | 17.3 ft in (5273 mm) |
| Reach At Max Lift And Dump | 4.33 ft in (1319 mm) |
Engine
| Emission Tier Level | EPA 40 CFR 89 / Tier 4 Final EU 97/68/EC/STAGE IV |
| Number Of Cylinders | 6 |
| No. Of Valves | 4 |
| Engine Model | 6R1000 |
| Engine Type | MTU |
| Net Power | 256 hp (190.9 kw) |
| Air Cleaner | Intergrated pre-cleaner, scavenged |
| Gross Power | 258 hp (192.4 kw) |
| Power Measured @ | 1600 rpm |
| Max Torque | 1150 Nm |
| Displacement | 469.9 cu in (7.7 L) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbo Charged |
| Fan Drive Type | Hydraulic |
Operational
| Def Tank Capacity | 11.1 gal (42 L) |
| Full Turn Tipping Load | 19861.5 lb (9009 kg) |
| Payload | 9931.9 lb (4505 kg) |
| Operating Weight | 47273.8 lb (21443 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 35.7 gal (135 L) |
| Engine Oil Fluid Capacity | 6.7 gal (25 L) |
| Cooling System Fluid Capacity | 11.1 gal (42 L) |
| Transmission Fluid Capacity | 10.9 gal (41 L) |
| Front Axle/Diff Fluid Capacity | 9.3 gal (35 L) |
| Rear Axle/Diff Fluid Capacity | 9.3 gal (35 L) |
| Turning Radius | 23.4 ft in (7121 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Rear Axle Oscillation | 11.5 degrees |
| Articulation Angle | 40 degrees |
Transmission
| Transmission Type | 4 speed non-lock up converter ZF 4WG210 |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.5 mph (36.1 km/h) |
| Max Speed - Reverse | 14.7 mph (23.5 km/h) |
Hydraulic System
| Max Operating Pressure | 220 bar |
| Relief Valve Setting | 3190 psi (21994.3 kPa) |
| Pump Flow Capacity | 40.5 gal/min (153 L/min) |
| Raise Time | 5.8 sec |
| Dump Time | 1.2 sec |
| Lower Time | 4.1 sec |
| Total Cycle | 11.1 sec |
| Pump Type | Variable displacement |
