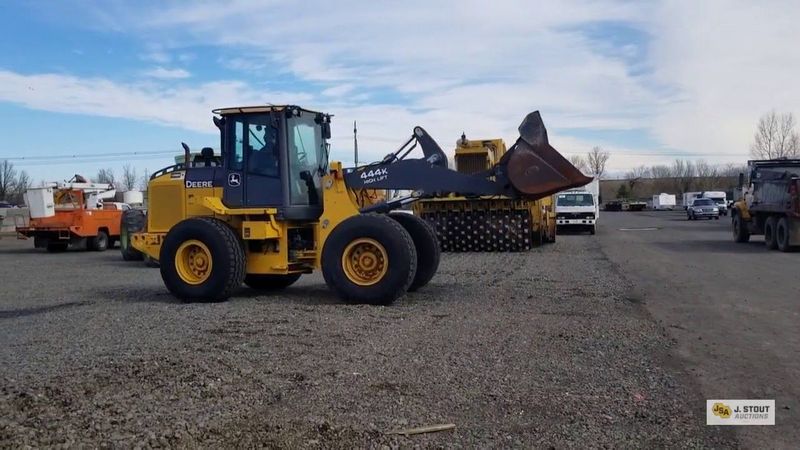

John Deere 444K High-Lift
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.95 ft in (3030 mm) |
| Bucket Capacity - Heaped | 2.49 yd3 (1.9 m3) |
| Bucket Capacity - Struck | 2.1 yd3 (1.6 m3) |
| Bucket Width | 8.34 ft in (2540 mm) |
| Breakout Force | 16656 lb (74.09 kN) |
Dimensions
| Ground Clearance | 1.29 ft in (393 mm) |
| Length With Bucket On Ground | 24.22 ft in (7380 mm) |
| Width Over Tires | 7.93 ft in (2415 mm) |
| Height To Top Of Cab | 10.41 ft in (3170 mm) |
| Wheelbase | 9.06 ft in (2760 mm) |
| Hinge Pin - Max Height | 13.13 ft in (4000 mm) |
| Reach At Max Lift And Dump | 3.42 ft in (1040 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | E 4045H, Tier III certified |
| Net Power | 128 hp (95.5 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 380 lb ft (515.3 Nm) |
| Displacement | 276 cu in (4.6 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged charge air cooled |
| Torque Rise | 32 % |
Operational
| Operating Weight | 24621.3 lb (11168 kg) |
| Fuel Capacity | 64 gal (242 L) |
| Hydraulic System Fluid Capacity | 24.1 gal (91 L) |
| Engine Oil Fluid Capacity | 4.7 gal (17.5 L) |
| Cooling System Fluid Capacity | 5.1 gal (19 L) |
| Transmission Fluid Capacity | 4.9 gal (18.5 L) |
| Front Axle/Diff Fluid Capacity | 5.9 gal (22 L) |
| Rear Axle/Diff Fluid Capacity | 5.9 gal (22 L) |
| Static Tipping Weight | 17392.3 lb (7889 kg) |
| Turning Radius | 15.6 ft in (4740 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 17.5 R 25 |
Transmission
| Transmission Type | Countershaft, powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.4 mph (36 km/h) |
| Max Speed - Reverse | 15.8 mph (25.3 km/h) |
Hydraulic System
| Relief Valve Setting | 3600 psi (24821.2 kPa) |
| Pump Flow Capacity | 37 gal/min (140 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 1 sec |
| Lower Time | 2.4 sec |
| Pump Type | variable displacement, axial piston |
