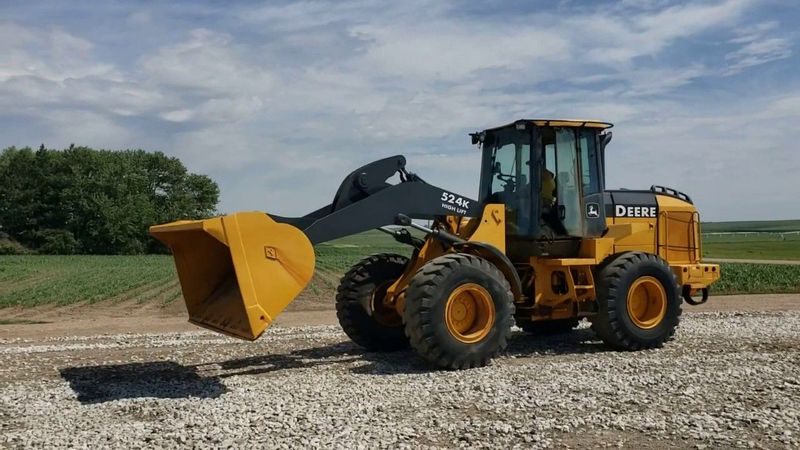

John Deere 524K High-Lift
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.24 ft in (3120 mm) |
| Bucket Capacity - Heaped | 2.75 yd3 (2.1 m3) |
| Bucket Capacity - Struck | 2.23 yd3 (1.7 m3) |
| Bucket Width | 8.34 ft in (2540 mm) |
| Breakout Force | 22394 lb (99.62 kN) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Length With Bucket On Ground | 25.17 ft in (7670 mm) |
| Width Over Tires | 8.35 ft in (2545 mm) |
| Height To Top Of Cab | 10.67 ft in (3250 mm) |
| Wheelbase | 9.62 ft in (2930 mm) |
| Hinge Pin - Max Height | 13.52 ft in (4120 mm) |
| Reach At Max Lift And Dump | 3.25 ft in (990 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | E 6068H, Tier III certified |
| Net Power | 146 hp (108.9 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 448 lb ft (607.5 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharged charge air cooled |
| Torque Rise | 47 % |
Operational
| Operating Weight | 27500.5 lb (12474 kg) |
| Fuel Capacity | 85.9 gal (325 L) |
| Hydraulic System Fluid Capacity | 24.1 gal (91 L) |
| Engine Oil Fluid Capacity | 5.1 gal (19 L) |
| Cooling System Fluid Capacity | 6.1 gal (23 L) |
| Transmission Fluid Capacity | 4.9 gal (18.5 L) |
| Front Axle/Diff Fluid Capacity | 4.5 gal (17 L) |
| Rear Axle/Diff Fluid Capacity | 4.5 gal (17 L) |
| Static Tipping Weight | 19290.5 lb (8750 kg) |
| Turning Radius | 16.5 ft in (5000 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5 R 25 |
Transmission
| Transmission Type | Countershaft, powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.4 mph (36 km/h) |
| Max Speed - Reverse | 15 mph (24.1 km/h) |
Hydraulic System
| Relief Valve Setting | 3625 psi (24993.5 kPa) |
| Pump Flow Capacity | 43.6 gal/min (165 L/min) |
| Raise Time | 6.1 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3 sec |
| Pump Type | variable displacement, axial piston |
