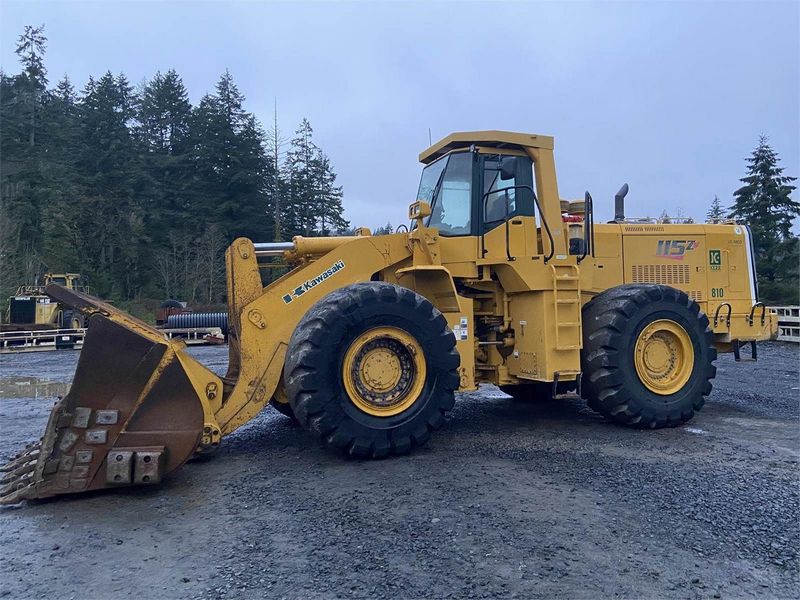

Kawasaki 115ZV
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 12.01 ft in (3660 mm) |
| Bucket Capacity - Heaped | 8.64 yd3 (6.6 m3) |
| Bucket Capacity - Struck | 7.59 yd3 (5.8 m3) |
| Bucket Width | 12.37 ft in (3770 mm) |
| Breakout Force | 86900 lb (386.56 kN) |
Dimensions
| Ground Clearance | 1.81 ft in (550 mm) |
| Length With Bucket On Ground | 35.37 ft in (10780 mm) |
| Width Over Tires | 11.72 ft in (3570 mm) |
| Height To Top Of Cab | 13.69 ft in (4170 mm) |
| Wheelbase | 13.29 ft in (4050 mm) |
| Hinge Pin - Max Height | 16.54 ft in (5040 mm) |
| Reach At Max Lift And Dump | 5.55 ft in (1690 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSK19 |
| Net Power | 480 hp (358 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 1386 lb ft (1879.2 Nm) |
| Displacement | 1150 cu in (18.9 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | turbocharged & intercooler |
Operational
| Operating Weight | 98436.4 lb (44650 kg) |
| Fuel Capacity | 177 gal (670 L) |
| Hydraulic System Fluid Capacity | 125.5 gal (475 L) |
| Engine Oil Fluid Capacity | 17.5 gal (66 L) |
| Cooling System Fluid Capacity | 32.3 gal (122 L) |
| Transmission Fluid Capacity | 22.5 gal (85 L) |
| Front Axle/Diff Fluid Capacity | 47.6 gal (180 L) |
| Rear Axle/Diff Fluid Capacity | 47.6 gal (180 L) |
| Static Tipping Weight | 67219 lb (30490 kg) |
| Turning Radius | 27.1 ft in (8230 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 35/65-33-24PR (L-4) |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.8 mph (35.1 km/h) |
| Max Speed - Reverse | 14.1 mph (22.7 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 48.1 gal/min (182.1 L/min) |
| Raise Time | 8.4 sec |
| Dump Time | 2.1 sec |
| Lower Time | 4.7 sec |
| Pump Type | gear type |
