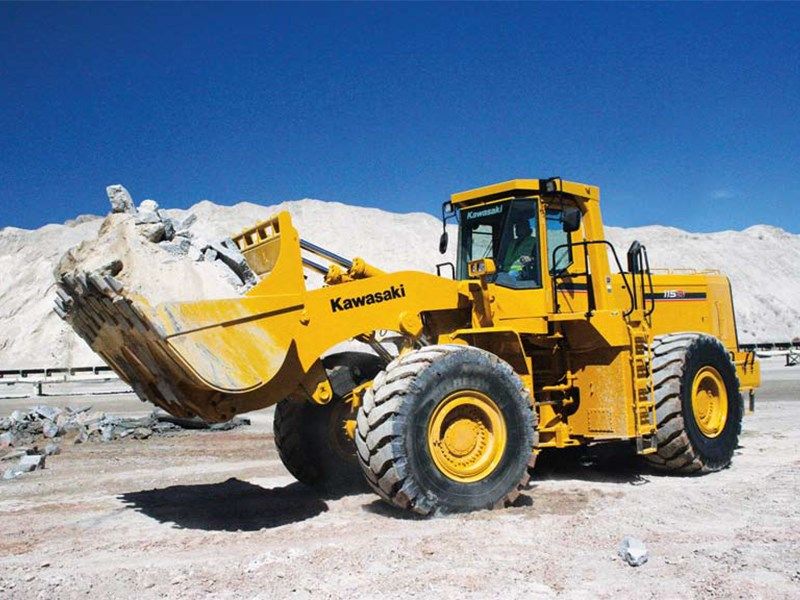

Kawasaki 115ZV-2
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 11.88 ft in (3620 mm) |
| Bucket Capacity - Heaped | 8.5 yd3 (6.6 m3) |
| Bucket Capacity - Struck | 7.5 yd3 (5.8 m3) |
| Bucket Width | 12.37 ft in (3770 mm) |
| Breakout Force | 86900 lb (386.56 kN) |
Dimensions
| Ground Clearance | 1.68 ft in (510 mm) |
| Length With Bucket On Ground | 35.7 ft in (10880 mm) |
| Width Over Tires | 11.68 ft in (3560 mm) |
| Height To Top Of Cab | 13.57 ft in (4135 mm) |
| Wheelbase | 13.62 ft in (4150 mm) |
| Hinge Pin - Max Height | 16.41 ft in (5000 mm) |
| Reach At Max Lift And Dump | 5.55 ft in (1690 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSK19 |
| Net Power | 463 hp (345.3 kw) |
| Gross Power | 506 hp (377.4 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1908 lb ft (2587 Nm) |
| Displacement | 1159 cu in (19 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 102710 lb (46590 kg) |
| Fuel Capacity | 174.4 gal (660 L) |
| Hydraulic System Fluid Capacity | 125.5 gal (475 L) |
| Engine Oil Fluid Capacity | 16.2 gal (61 L) |
| Cooling System Fluid Capacity | 38.4 gal (145 L) |
| Transmission Fluid Capacity | 23.8 gal (90 L) |
| Front Axle/Diff Fluid Capacity | 47.6 gal (180 L) |
| Rear Axle/Diff Fluid Capacity | 47.6 gal (180 L) |
| Static Tipping Weight | 71960 lb (32640 kg) |
| Turning Radius | 27.5 ft in (8370 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 35/65-33-VSDL (L-5) |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.4 mph (36.1 km/h) |
| Max Speed - Reverse | 4.7 mph (7.6 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 61 gal/min (231 L/min) |
| Raise Time | 8.4 sec |
| Dump Time | 1.7 sec |
| Lower Time | 5 sec |
| Pump Type | gear type |
