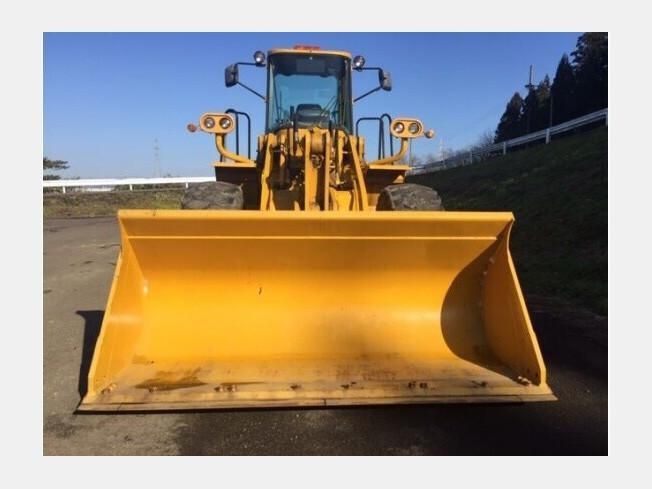

Kawasaki 85ZA
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.9 ft in (3015 mm) |
| Bucket Capacity - Heaped | 4.98 yd3 (3.8 m3) |
| Bucket Capacity - Struck | 4.32 yd3 (3.3 m3) |
| Breakout Force | 4172.46 lb (18.56 kN) |
Dimensions
| Length With Bucket On Ground | 26.28 ft in (8010 mm) |
| Height To Top Of Cab | 11.41 ft in (3475 mm) |
| Wheelbase | 10.83 ft in (3300 mm) |
| Reach At Max Lift And Dump | 3.76 ft in (1145 mm) |
Engine
| Engine Make | 2311 |
| Engine Model | PE6T34 |
| Net Power | 216 hp (161.1 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 712.2 cu in (11.7 L) |
| Aspiration | diesel w/ turbo |
Operational
| Operating Weight | 43651.6 lb (19800 kg) |
| Turning Radius | 21.9 ft in (6650 mm) |
| Tire Size | 26.5-25-20PR(L3) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.2 mph (34 km/h) |
| Max Speed - Reverse | 21.6 mph (34.7 km/h) |
Hydraulic System
| Raise Time | 6.3 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.5 sec |
