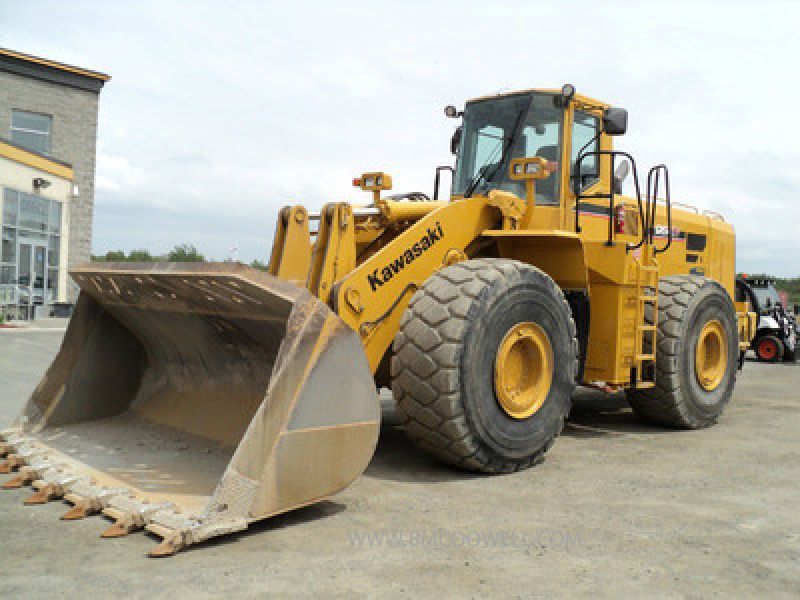

Kawasaki 95ZV-2
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.57 ft in (3220 mm) |
| Bucket Capacity - Heaped | 7.07 yd3 (5.4 m3) |
| Bucket Capacity - Struck | 5.76 yd3 (4.41 m3) |
| Bucket Width | 11.32 ft in (3450 mm) |
| Breakout Force | 55120 lb (245.19 kN) |
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Length With Bucket On Ground | 30.45 ft in (9280 mm) |
| Width Over Tires | 10.57 ft in (3220 mm) |
| Height To Top Of Cab | 12.34 ft in (3760 mm) |
| Wheelbase | 11.82 ft in (3600 mm) |
| Hinge Pin - Max Height | 14.74 ft in (4490 mm) |
| Reach At Max Lift And Dump | 4.43 ft in (1350 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSX15 |
| Net Power | 348 hp (259.6 kw) |
| Gross Power | 390 hp (290.9 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 1346 lb ft (1825 Nm) |
| Displacement | 917 cu in (15.1 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 68170 lb (30921.4 kg) |
| Fuel Capacity | 122.9 gal (465 L) |
| Hydraulic System Fluid Capacity | 70.1 gal (265 L) |
| Engine Oil Fluid Capacity | 13.3 gal (50 L) |
| Cooling System Fluid Capacity | 26.5 gal (100 L) |
| Transmission Fluid Capacity | 17.2 gal (65 L) |
| Front Axle/Diff Fluid Capacity | 26.5 gal (100 L) |
| Rear Axle/Diff Fluid Capacity | 26.5 gal (100 L) |
| Static Tipping Weight | 53418.1 lb (24230 kg) |
| Turning Radius | 23.9 ft in (7275 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 29.5x25-22PR (L-3) |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.3 mph (37.5 km/h) |
| Max Speed - Reverse | 16.2 mph (26.1 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 50.2 gal/min (190.1 L/min) |
| Raise Time | 6.1 sec |
| Dump Time | 1.5 sec |
| Lower Time | 4 sec |
| Pump Type | gear type |
