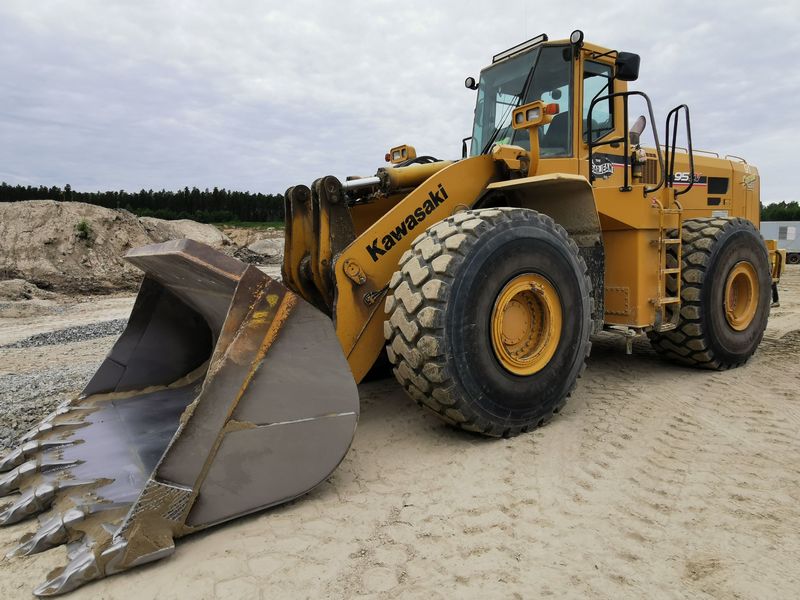

Kawasaki 95ZV
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.57 ft in (3220 mm) |
| Bucket Capacity - Heaped | 7.07 yd3 (5.4 m3) |
| Bucket Capacity - Struck | 5.76 yd3 (4.41 m3) |
| Bucket Width | 11.32 ft in (3450 mm) |
| Breakout Force | 55125 lb (55125 -) |
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Length With Bucket On Ground | 30.45 ft in (9280 mm) |
| Width Over Tires | 10.57 ft in (3220 mm) |
| Height To Top Of Cab | 12.34 ft in (3760 mm) |
| Wheelbase | 11.68 ft in (3560 mm) |
| Hinge Pin - Max Height | 14.74 ft in (4490 mm) |
| Reach At Max Lift And Dump | 4.43 ft in (1350 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSX15 Tier 2 |
| Net Power | 340 hp (253.6 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1060 lb ft (1437.2 Nm) |
| Displacement | 917 cu in (15.1 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged & intercooler |
Operational
| Operating Weight | 66315.1 lb (30080 kg) |
| Fuel Capacity | 112.3 gal (425 L) |
| Hydraulic System Fluid Capacity | 70.1 gal (265 L) |
| Engine Oil Fluid Capacity | 11.9 gal (45 L) |
| Cooling System Fluid Capacity | 25.4 gal (96 L) |
| Transmission Fluid Capacity | 14.6 gal (55 L) |
| Front Axle/Diff Fluid Capacity | 26.5 gal (100 L) |
| Rear Axle/Diff Fluid Capacity | 26.5 gal (100 L) |
| Static Tipping Weight | 51698.4 lb (23450 kg) |
| Turning Radius | 23.9 ft in (7275 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 29.5x25-22PR (L-3) |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.1 mph (34 km/h) |
| Max Speed - Reverse | 14.9 mph (24 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 53.4 gal/min (202.2 L/min) |
| Raise Time | 6.7 sec |
| Dump Time | 1.5 sec |
| Lower Time | 4 sec |
| Pump Type | gear type |
