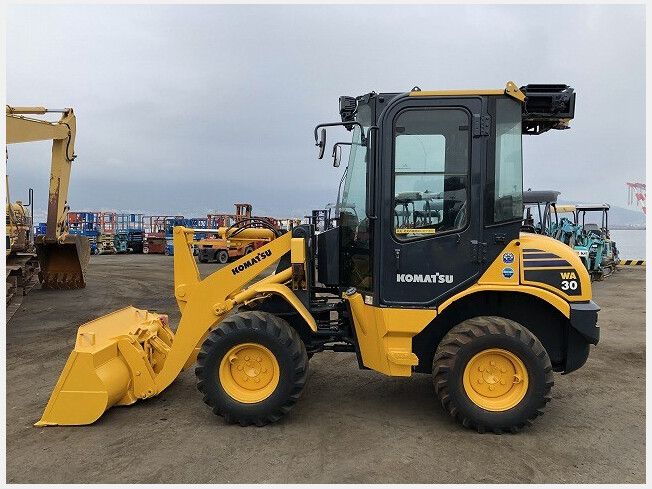

Komatsu W30
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 7.88 ft in (2400 mm) |
| Bucket Capacity - Heaped | 1.05 yd3 (0.8 m3) |
| Bucket Width | 6.4 ft in (1950 mm) |
| Breakout Force | 7610 lb (33.8 kN) |
Dimensions
| Length With Bucket On Ground | 15.52 ft in (4730 mm) |
| Width Over Tires | 6.11 ft in (1860 mm) |
| Height To Top Of Cab | 9.36 ft in (2850 mm) |
| Wheelbase | 7.06 ft in (2150 mm) |
| Hinge Pin - Max Height | 9.95 ft in (3030 mm) |
| Reach At Max Lift And Dump | 3.02 ft in (920 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | 4D94 |
| Gross Power | 49 hp (36.6 kw) |
| Displacement | 179.5 cu in (3 L) |
Operational
| Operating Weight | 10317.7 lb (4680 kg) |
| Fuel Capacity | 15.9 gal (60 L) |
| Cooling System Fluid Capacity | 3.2 gal (12 L) |
| Static Tipping Weight | 6481.6 lb (2940 kg) |
| Turning Radius | 14.3 ft in (4350 mm) |
| Tire Size | 42x17-20-10PR (L-2) |
Transmission
| Transmission Type | TORQFLOW full powershift countershaft |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
| Max Speed - Reverse | 6.3 mph (10 km/h) |
Hydraulic System
| Raise Time | 5.6 sec |
| Dump Time | 1.9 sec |
| Lower Time | 4 sec |
