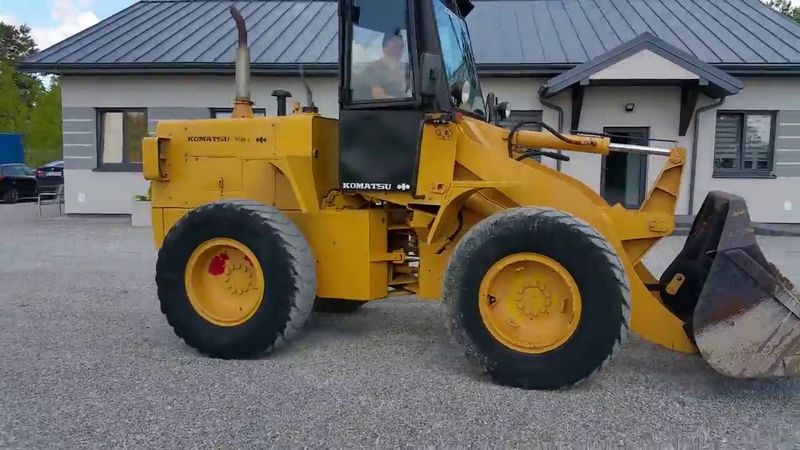

Komatsu W40
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.8 ft in (2680 mm) |
| Bucket Capacity - Heaped | 1.57 yd3 (1.2 m3) |
| Bucket Width | 7.85 ft in (2390 mm) |
| Breakout Force | 13070 lb (58.2 kN) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Length With Bucket On Ground | 17.79 ft in (5420 mm) |
| Width Over Tires | 7.29 ft in (2220 mm) |
| Height To Top Of Cab | 9.44 ft in (2875 mm) |
| Wheelbase | 8.01 ft in (2440 mm) |
| Hinge Pin - Max Height | 11.01 ft in (3355 mm) |
| Reach At Max Lift And Dump | 3.2 ft in (975 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | 4D105 |
| Gross Power | 72 hp (53.7 kw) |
| Displacement | 264 cu in (4.4 L) |
Operational
| Operating Weight | 14175.8 lb (6430 kg) |
| Fuel Capacity | 31 gal (117 L) |
| Cooling System Fluid Capacity | 8.5 gal (32 L) |
| Static Tipping Weight | 10868.8 lb (4930 kg) |
| Turning Radius | 16.2 ft in (4920 mm) |
| Tire Size | 16.9-24-10PR (L2) |
Transmission
| Transmission Type | Torqflow countershaft soft shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
| Max Speed - Reverse | 21.2 mph (34 km/h) |
