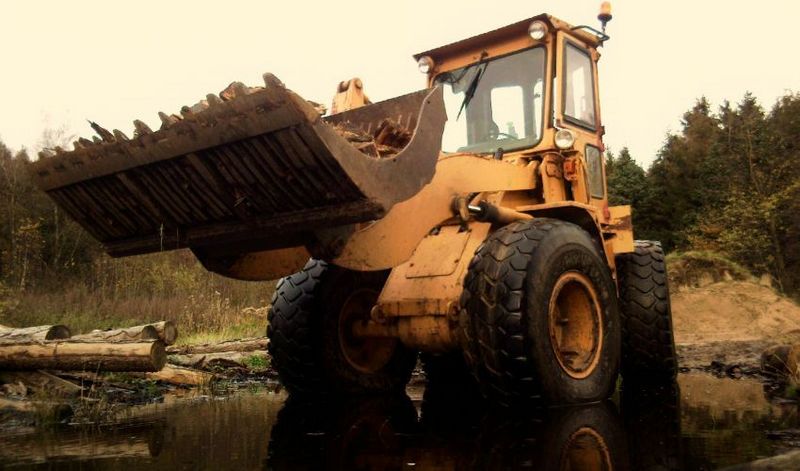

Komatsu W60
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.95 ft in (2725 mm) |
| Bucket Capacity - Heaped | 1.84 yd3 (1.4 m3) |
| Bucket Width | 7.85 ft in (2390 mm) |
| Breakout Force | 16560 lb (73.6 kN) |
Dimensions
| Ground Clearance | 1.42 ft in (430 mm) |
| Length With Bucket On Ground | 18.87 ft in (5750 mm) |
| Width Over Tires | 7.29 ft in (2220 mm) |
| Height To Top Of Cab | 9.6 ft in (2925 mm) |
| Wheelbase | 8.34 ft in (2540 mm) |
| Hinge Pin - Max Height | 11.36 ft in (3460 mm) |
| Reach At Max Lift And Dump | 3.22 ft in (980 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | 6D105 |
| Gross Power | 102 hp (76.1 kw) |
| Displacement | 396 cu in (6.5 L) |
Operational
| Operating Weight | 17218.2 lb (7810 kg) |
| Fuel Capacity | 36.8 gal (139 L) |
| Cooling System Fluid Capacity | 8.8 gal (33 L) |
| Static Tipping Weight | 12764.8 lb (5790 kg) |
| Turning Radius | 17 ft in (5170 mm) |
| Tire Size | 14.00-24-12PR (L-2) |
Transmission
| Transmission Type | full powershift countershaft type full soft shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.7 mph (38.1 km/h) |
| Max Speed - Reverse | 23.8 mph (38.3 km/h) |
