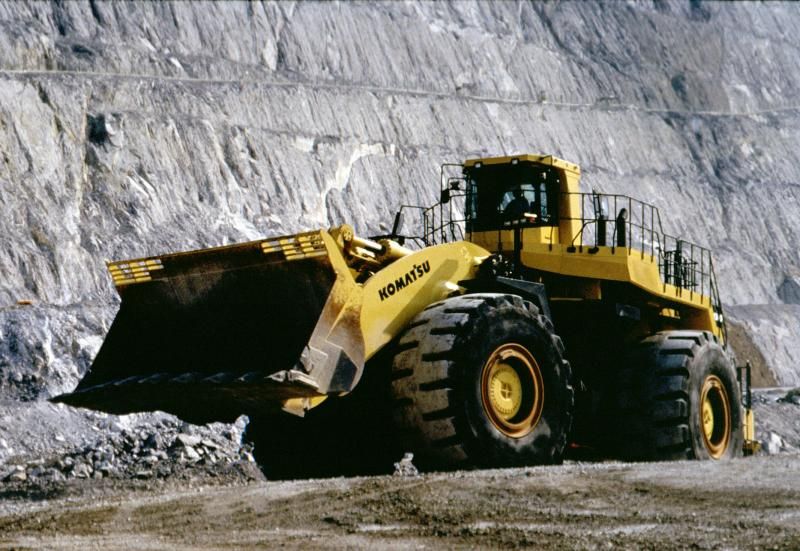

Komatsu WA1200-3
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 20.63 ft in (6285 mm) |
| Bucket Capacity - Heaped | 26.16 yd3 (20 m3) |
| Bucket Capacity - Struck | 22.5 yd3 (17.2 m3) |
| Bucket Width | 21 ft in (6400 mm) |
| Breakout Force | 286600 lb (1274.87 kN) |
Dimensions
| Length With Bucket On Ground | 59.72 ft in (18200 mm) |
| Width Over Tires | 18.74 ft in (5710 mm) |
| Height To Top Of Cab | 22.5 ft in (6858 mm) |
| Wheelbase | 23.3 ft in (7100 mm) |
| Hinge Pin - Max Height | 28.97 ft in (8830 mm) |
| Reach At Max Lift And Dump | 9.75 ft in (2970 mm) |
Engine
| Number Of Cylinders | 16 |
| Engine Make | 2347 |
| Engine Model | QSK60 |
| Net Power | 1560 hp (1163.3 kw) |
| Gross Power | 1715 hp (1278.9 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 3674 cu in (60.3 L) |
| Aspiration | Turbocharged and Aftercooled |
Operational
| Operating Weight | 452390 lb (205200.7 kg) |
| Fuel Capacity | 1347.3 gal (5100 L) |
| Hydraulic System Fluid Capacity | 317.1 gal (1200 L) |
| Engine Oil Fluid Capacity | 68.7 gal (260 L) |
| Cooling System Fluid Capacity | 132.1 gal (500 L) |
| Transmission Fluid Capacity | 92.5 gal (350 L) |
| Front Axle/Diff Fluid Capacity | 177 gal (670 L) |
| Rear Axle/Diff Fluid Capacity | 177 gal (670 L) |
| Static Tipping Weight | 264100 lb (119793.8 kg) |
| Turning Radius | 47.1 ft in (14330 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 140 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 55.5/80-57 |
Transmission
| Transmission Type | Power shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 12.4 mph (19.8 km/h) |
| Max Speed - Reverse | 14.1 mph (22.6 km/h) |
Hydraulic System
| Relief Valve Setting | 4550 psi (31371.2 kPa) |
| Pump Flow Capacity | 276 gal/min (1044.8 L/min) |
| Raise Time | 13.5 sec |
| Dump Time | 3 sec |
| Lower Time | 5 sec |
