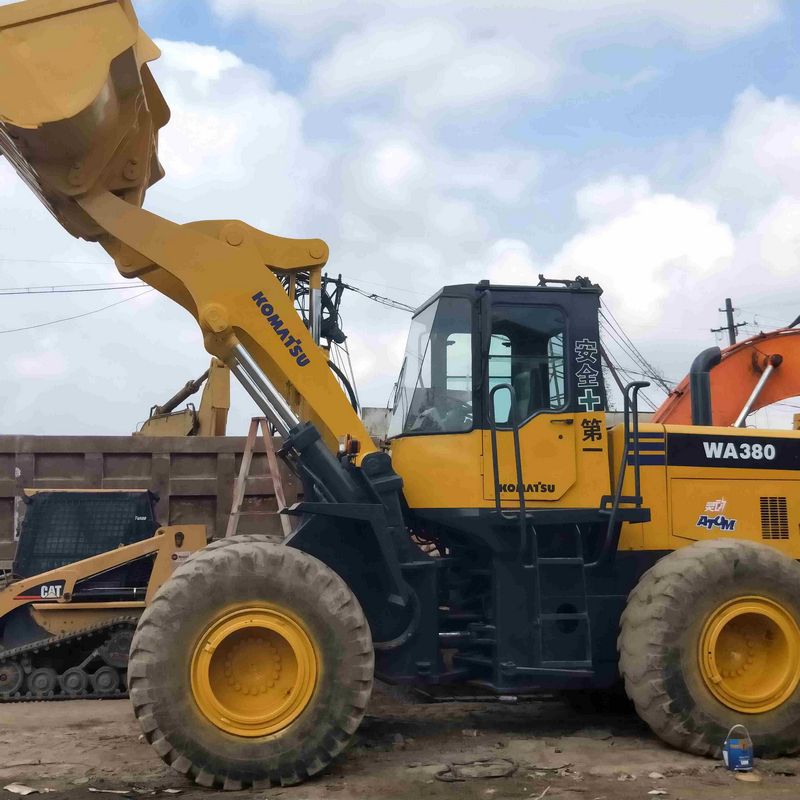

Komatsu WA380-3
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.6 ft in (2925 mm) |
| Bucket Capacity - Heaped | 4.19 yd3 (3.2 m3) |
| Bucket Capacity - Struck | 3.54 yd3 (2.7 m3) |
| Bucket Width | 9.54 ft in (2905 mm) |
| Breakout Force | 33300 lb (148.13 kN) |
Dimensions
| Ground Clearance | 1.28 ft in (390 mm) |
| Length With Bucket On Ground | 26.14 ft in (7965 mm) |
| Width Over Tires | 8.85 ft in (2695 mm) |
| Height To Top Of Cab | 10.88 ft in (3315 mm) |
| Wheelbase | 10.5 ft in (3200 mm) |
| Hinge Pin - Max Height | 13.23 ft in (4030 mm) |
| Reach At Max Lift And Dump | 3.84 ft in (1170 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | S6D108 |
| Gross Power | 187.8 hp (140 kw) |
| Displacement | 436.4 cu in (7.2 L) |
Operational
| Operating Weight | 35902.3 lb (16285 kg) |
| Fuel Capacity | 75.9 gal (287 L) |
| Static Tipping Weight | 27513.7 lb (12480 kg) |
| Turning Radius | 21.1 ft in (6430 mm) |
| Tire Size | 20.5-25-16PR |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 19.6 mph (31.5 km/h) |
| Max Speed - Reverse | 20.2 mph (32.5 km/h) |
