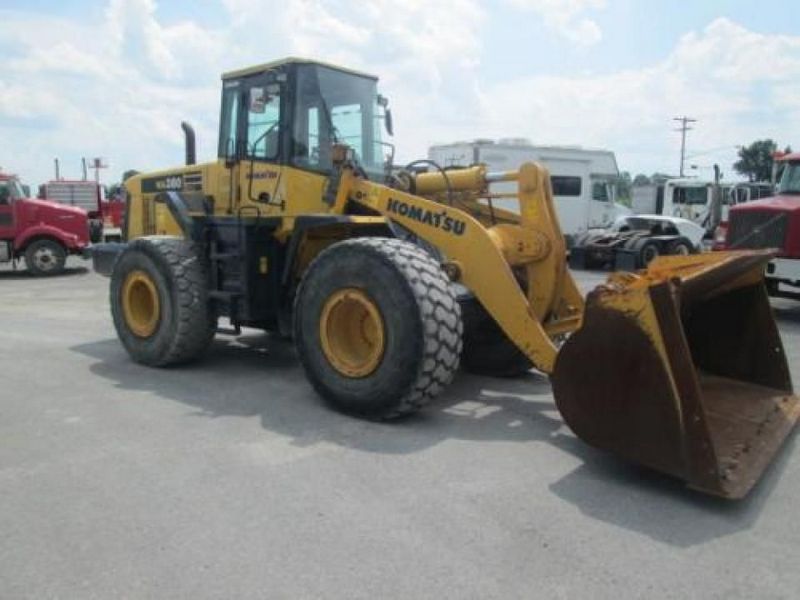

Komatsu WA380-5
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.04 ft in (2755 mm) |
| Bucket Capacity - Heaped | 4.06 yd3 (3.1 m3) |
| Breakout Force | _ - (148 kN) |
Dimensions
| Ground Clearance | 1.28 ft in (390 mm) |
| Length With Bucket On Ground | 27.4 ft in (8350 mm) |
| Height To Top Of Cab | 11.09 ft in (3380 mm) |
| Wheelbase | 10.83 ft in (3300 mm) |
| Reach At Max Lift And Dump | 4.29 ft in (1305 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | SAA6D1143-2 |
| Net Power | 187.8 hp (140 kw) |
Operational
| Operating Weight | 38007.7 lb (17240 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Static Tipping Weight | 30192.4 lb (13695 kg) |
| Tire Size | 23.5X25 12PR L5 |
Transmission
| Transmission Type | full powershift counter shaft |
| Max Speed - Forward | 21.2 mph (34 km/h) |
| Max Speed - Reverse | 21.8 mph (35 km/h) |
