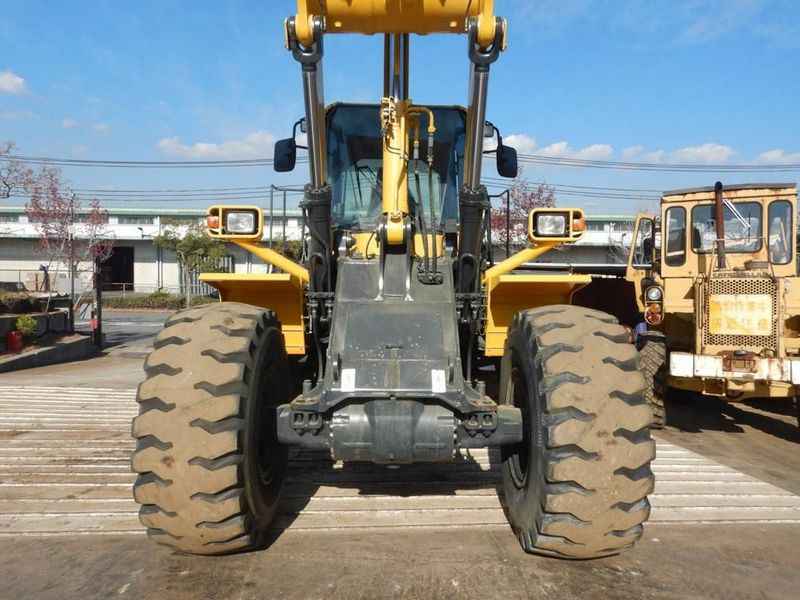

Komatsu WA450-6 Waste Handler
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.5 ft in (2886 mm) |
| Bucket Width | 11.17 ft in (3403 mm) |
| Bucket Capacity - Heaped | 8.25 yd3 (6.3 m3) |
Dimensions
| Ground Clearance | 1.83 ft in (539 mm) |
| Length With Bucket On Ground | 30 ft in (9159 mm) |
| Width Over Tires | 9.92 ft in (3010 mm) |
| Height To Top Of Cab | 11.42 ft in (3489 mm) |
| Wheelbase | 11.33 ft in (3450 mm) |
| Hinge Pin - Max Height | 14.33 ft in (4360 mm) |
Engine
| Engine Model | SAA6D125E-5 |
| Net Power | 272 hp (203 kw) |
Operational
| Operating Weight | 55245 lb (25059 kg) |
| Static Tipping Weight | 36380 lb (16502 kg) |
| Turning Radius | 48.1 ft in (14656 mm) |
