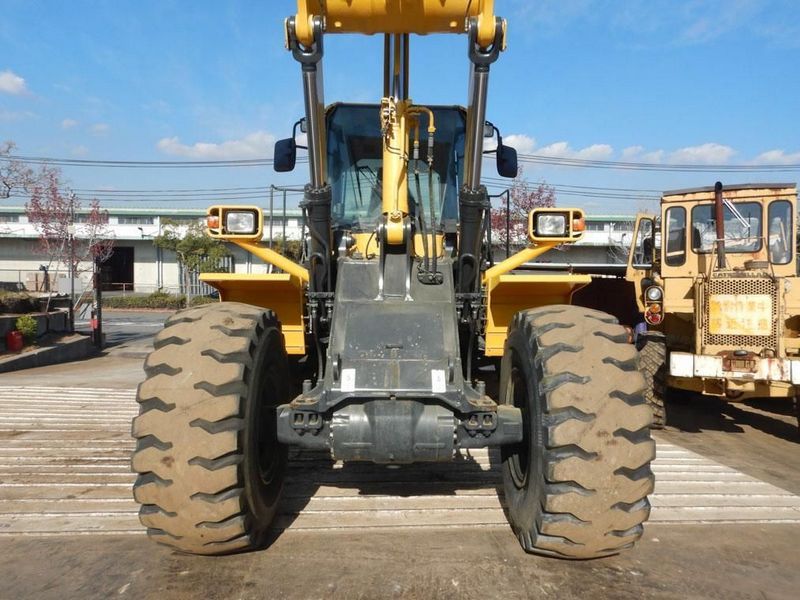

Komatsu WA430-6 Waste Handler
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.11 ft in (2774 mm) |
| Bucket Width | 11.16 ft in (3400 mm) |
| Bucket Capacity - Heaped | 7.46 yd3 (5.7 m3) |
Dimensions
| Ground Clearance | 1.5 ft in (455 mm) |
| Length With Bucket On Ground | 28.81 ft in (8780 mm) |
| Width Over Tires | 9.25 ft in (2820 mm) |
| Height To Top Of Cab | 11.08 ft in (3390 mm) |
| Wheelbase | 10.83 ft in (3300 mm) |
| Hinge Pin - Max Height | 13.67 ft in (4165 mm) |
| Reach At Max Lift And Dump | 4.6 ft in (1400 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | SAA6D114E-3 |
| Net Power | 231 hp (172 kw) |
| Power Measured @ | 2100 rpm |
Operational
| Operating Weight | 44487.1 lb (20179 kg) |
| Static Tipping Weight | 31768.7 lb (14410 kg) |
| Turning Radius | 25 ft in (7593.5 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Tire Size | 23.5-R25 L3 |
Transmission
| Transmission Type | Automatic shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
