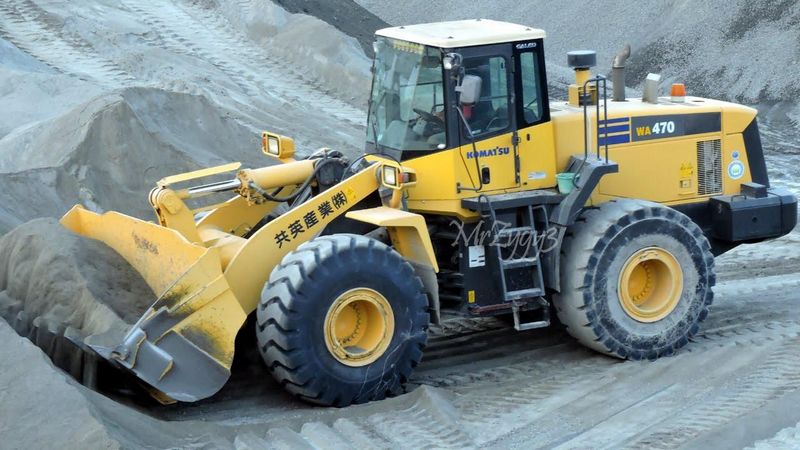

Komatsu WA470-3M Active+
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.85 ft in (3000 mm) |
| Bucket Capacity - Heaped | 5.5 yd3 (4.2 m3) |
| Bucket Width | 9.85 ft in (3000 mm) |
| Breakout Force | 40915.23 lb (182 kN) |
Dimensions
| Ground Clearance | 1.61 ft in (490 mm) |
| Length With Bucket On Ground | 28.2 ft in (8594 mm) |
| Width Over Tires | 9.47 ft in (2885 mm) |
| Height To Top Of Cab | 11.41 ft in (3475 mm) |
| Wheelbase | 11.16 ft in (3400 mm) |
| Hinge Pin - Max Height | 13.85 ft in (4220 mm) |
| Reach At Max Lift And Dump | 4.19 ft in (1276 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SA6D125E |
| Gross Power | 263 hp (196.2 kw) |
| Max Torque | 773.8 lb ft (1049 Nm) |
| Displacement | 674.1 cu in (11.1 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 51522.1 lb (23370 kg) |
| Fuel Capacity | 103.1 gal (390 L) |
| Hydraulic System Fluid Capacity | 63.5 gal (240 L) |
| Engine Oil Fluid Capacity | 8.8 gal (33 L) |
| Cooling System Fluid Capacity | 18 gal (68 L) |
| Transmission Fluid Capacity | 13.8 gal (52 L) |
| Front Axle/Diff Fluid Capacity | 17.2 gal (65 L) |
| Rear Axle/Diff Fluid Capacity | 17.2 gal (65 L) |
| Static Tipping Weight | 40366.7 lb (18310 kg) |
| Turning Radius | 20.3 ft in (6175 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 30 degrees |
| Tire Size | 26.5 R25 XHA L3, Michelin |
Transmission
| Transmission Type | fully automatic 4-speed full powershift with 'kickodwn' and 'gear-hold' |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24.3 mph (39 km/h) |
| Max Speed - Reverse | 23.4 mph (37.5 km/h) |
Hydraulic System
| Relief Valve Setting | 3045.8 psi (21000 kPa) |
| Pump Flow Capacity | 104.9 gal/min (397 L/min) |
| Raise Time | 6.8 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.7 sec |
