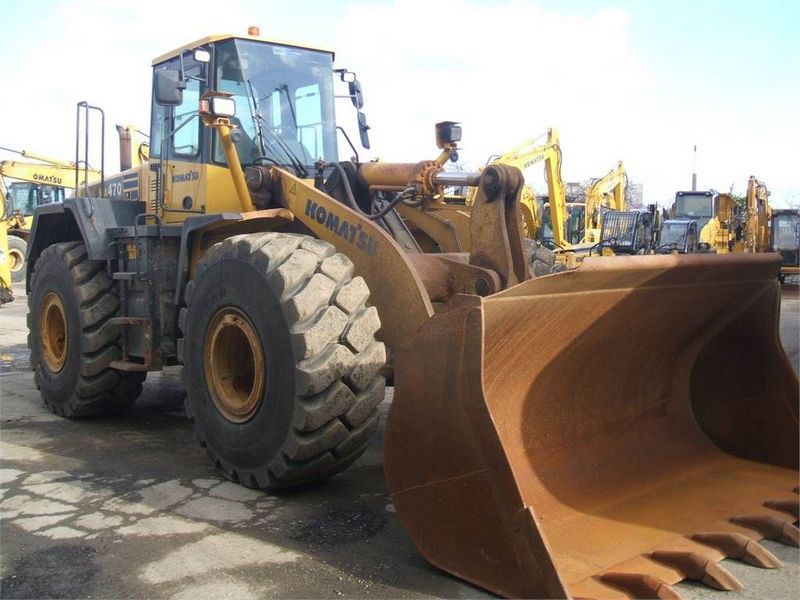

Komatsu WA470-5
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.18 ft in (3100 mm) |
| Bucket Capacity - Heaped | 5.37 yd3 (4.1 m3) |
| Bucket Width | 9.81 ft in (2990 mm) |
| Breakout Force | 41364.85 lb (184 kN) |
Dimensions
| Ground Clearance | 1.73 ft in (525 mm) |
| Length With Bucket On Ground | 29.17 ft in (8890 mm) |
| Width Over Tires | 9.53 ft in (2903 mm) |
| Height To Top Of Cab | 11.36 ft in (3460 mm) |
| Wheelbase | 11.32 ft in (3450 mm) |
| Hinge Pin - Max Height | 14.24 ft in (4340 mm) |
| Reach At Max Lift And Dump | 4.25 ft in (1295 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D125E-3 |
| Gross Power | 271 hp (202.1 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 918.3 lb ft (1245 Nm) |
| Displacement | 673.8 cu in (11.1 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharger |
Operational
| Operating Weight | 50221.3 lb (22780 kg) |
| Fuel Capacity | 103.1 gal (390 L) |
| Hydraulic System Fluid Capacity | 49.2 gal (186 L) |
| Engine Oil Fluid Capacity | 10.1 gal (38 L) |
| Cooling System Fluid Capacity | 13.3 gal (50 L) |
| Transmission Fluid Capacity | 49.2 gal (186 L) |
| Front Axle/Diff Fluid Capacity | 13.8 gal (52 L) |
| Rear Axle/Diff Fluid Capacity | 13.8 gal (52 L) |
| Static Tipping Weight | 41678.4 lb (18905 kg) |
| Turning Radius | 20.4 ft in (6201 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 30 degrees |
| Tire Size | 26.5 R25 |
Transmission
| Transmission Type | automatic powershift transmission |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24.7 mph (39.7 km/h) |
| Max Speed - Reverse | 25.5 mph (40.9 km/h) |
Hydraulic System
| Relief Valve Setting | 3045.8 psi (21000 kPa) |
| Pump Flow Capacity | 108.4 gal/min (410 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.7 sec |
| Pump Type | gear pump |
