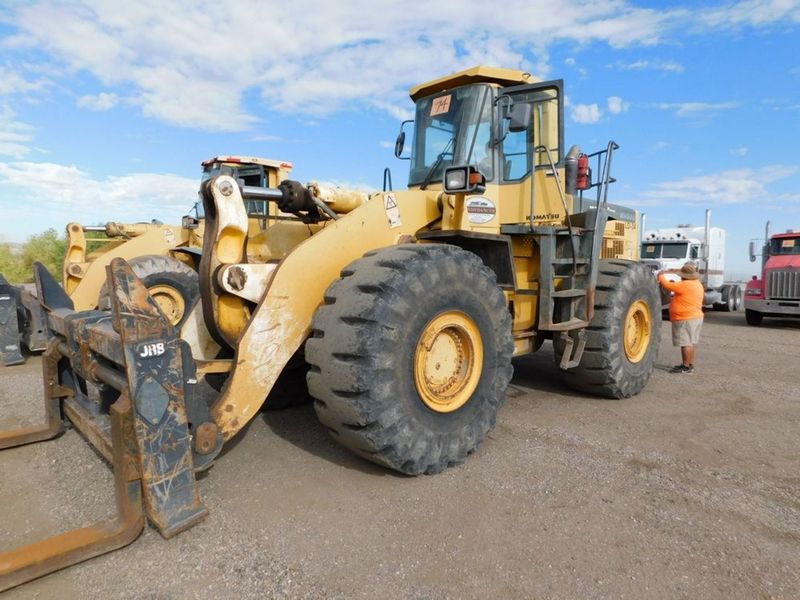

Komatsu WA500-3L
Browse All Komatsu or Wheel Loader Models
Contents:
Dimensions
| Ground Clearance | 1.5 ft in (457.2 mm) |
| Length With Bucket On Ground | 30.2 ft in (9204.96 mm) |
| Width Over Tires | 10.5 ft in (3200.4 mm) |
| Height To Top Of Cab | 12.7 ft in (3870.96 mm) |
| Wheelbase | 11.8 ft in (3596.64 mm) |
| Hinge Pin - Max Height | 14.8 ft in (4511.04 mm) |
| Reach At Max Lift And Dump | 4.3 ft in (1310.65 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAD140E |
| Gross Power | 315 hp (234.9 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 927.6 cu in (15.3 L) |
| Aspiration | TURBOCHARGED |
Operational
| Operating Weight | 64970.2 lb (29470 kg) |
| Fuel Capacity | 121.5 gal (460 L) |
| Hydraulic System Fluid Capacity | 46.2 gal (174.9 L) |
| Engine Oil Fluid Capacity | 9.8 gal (37.1 L) |
| Cooling System Fluid Capacity | 26.2 gal (99.2 L) |
| Transmission Fluid Capacity | 16.4 gal (62.1 L) |
| Front Axle/Diff Fluid Capacity | 20.6 gal (78 L) |
| Rear Axle/Diff Fluid Capacity | 20.6 gal (78 L) |
| Static Tipping Weight | 51588.2 lb (23400.1 kg) |
| Turning Radius | 21.4 ft in (6522.8 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 30 degrees |
| Tire Size | 25-26.5 |
Transmission
| Transmission Type | POWERSHIFT |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 20.5 mph (33 km/h) |
| Max Speed - Reverse | 22.4 mph (36.1 km/h) |
Hydraulic System
| Relief Valve Setting | 3045.8 psi (21000.1 kPa) |
| Pump Flow Capacity | 91.9 gal/min (347.9 L/min) |
| Raise Time | 6.4 sec |
| Dump Time | 1.7 sec |
| Lower Time | 3.5 sec |
| Pump Type | GEAR PUMP |
