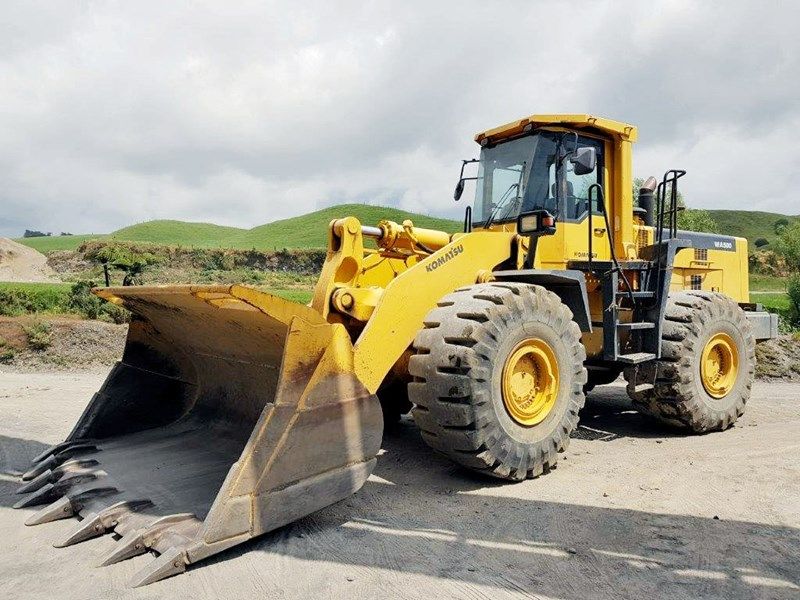

Komatsu WA500-3
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.49 ft in (3195 mm) |
| Bucket Capacity - Heaped | 6.54 yd3 (5 m3) |
| Bucket Width | 11.36 ft in (3460 mm) |
| Breakout Force | 55752.62 lb (248 kN) |
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Length With Bucket On Ground | 30.18 ft in (9197 mm) |
| Width Over Tires | 10.47 ft in (3190 mm) |
| Height To Top Of Cab | 12.67 ft in (3860 mm) |
| Wheelbase | 11.82 ft in (3600 mm) |
| Hinge Pin - Max Height | 14.76 ft in (4496 mm) |
| Reach At Max Lift And Dump | 4.35 ft in (1323 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAD140E |
| Gross Power | 315 hp (234.9 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 927.6 cu in (15.2 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 64970.3 lb (29470 kg) |
| Fuel Capacity | 121.6 gal (460 L) |
| Hydraulic System Fluid Capacity | 46.3 gal (175 L) |
| Engine Oil Fluid Capacity | 9.8 gal (37 L) |
| Cooling System Fluid Capacity | 26.2 gal (99 L) |
| Transmission Fluid Capacity | 16.4 gal (62 L) |
| Front Axle/Diff Fluid Capacity | 20.7 gal (78 L) |
| Rear Axle/Diff Fluid Capacity | 20.7 gal (78 L) |
| Static Tipping Weight | 51588.2 lb (23400 kg) |
| Turning Radius | 21.5 ft in (6530 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 30 degrees |
| Tire Size | 26.5 - 25 |
Transmission
| Transmission Type | powershift, planetary gear type |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 20.6 mph (33 km/h) |
| Max Speed - Reverse | 22.5 mph (36.1 km/h) |
Hydraulic System
| Relief Valve Setting | 3045.8 psi (21000 kPa) |
| Pump Flow Capacity | 92 gal/min (348 L/min) |
| Raise Time | 6.4 sec |
| Dump Time | 1.7 sec |
| Lower Time | 3.5 sec |
| Pump Type | gear pump |
