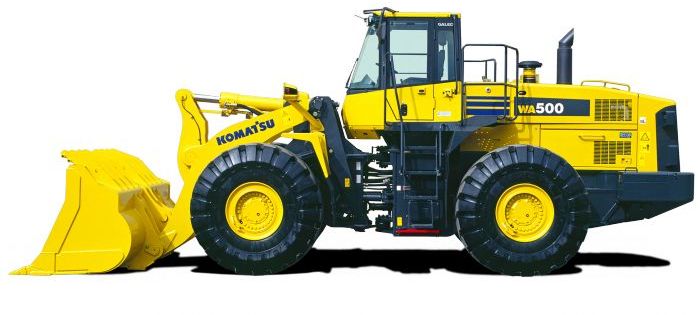

Komatsu WA500-6
Browse All Komatsu or Wheel Loader Models
Contents:
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Width Over Tires | 10.47 ft in (3190 mm) |
| Height To Top Of Cab | 12.42 ft in (3785 mm) |
| Wheelbase | 12.41 ft in (3780 mm) |
| Length | 386.42 in (9815 mm) |
| Turning Circle | 50.2 ft in (15300 mm) |
Steering System
| Steering System Type | Articulated |
| Minimum Turning Radius At The Centre Of Outside Tire | 21.1 ft in (6430 mm) |
Engine
| Horsepower, Gross-Sae J1995 | 356.8 hp (266 kw) |
| Horsepower, Net-Iso 9249 | 352.7 hp (263 kw) |
| Horsepower, Net-Sae J1349 | 332.6 hp (248 kw) |
| Fan Drive Method | Hydraulic |
| Lubrication Method | Gear pump, force-lubricatio |
| Filter | Full-flow type |
| Number Of Cylinders | 6 |
| Piston Displacement | 930.1 cu in (15.3 L) |
| Engine Make | 2238 |
| Engine Model | SAA6D140E-5 |
| Engine Type | Water-cooled, 4-cycle |
| Air Cleaner | Dry type |
| Governor | All-speed, electronic |
| Displacement | 930.1 cu in (15.3 L) |
| Aspiration | Turbocharged, after cooled |
| Bore | 5.6 in (140 mm) |
| Stroke | 6.5 in (165 mm) |
| Fuel System | Direct injection |
Driveline
| Brake | Hydraulic, Wet disc |
| Ride Control System | Standard |
| Maximum Speeds/Fwd Mph (Km/H) | 34.9 |
| Maximum Speeds/Rev Mph (Km/H) | 37.5 |
| Transmission | Automatic Powershift |
| Number Of Speeds - Forward | 4 |
| Number Of Speeds - Reverse | 4 |
Capacities
| Front Axle | 5309.1 cu in (87 L) |
| Fuel Tank | 125 gal (473 L) |
| Cooling System | 31.8 gal (120 L) |
| Rear Axle | 21.4 gal (81 L) |
| Hydraulic System | 89.1 gal (337 L) |
| Engine Oil | 11.9 gal (45 L) |
| Torque Converter, Transmission And Retarder Cooling | 20.1 gal (76 L) |
Operational
| Bucket Capacity Range – Sae | 4.3-5.6 m3 |
| Standard Bucket Capacity – Sae | 7.4 yd3 (5.6 m3) |
| Bucket Description | GP Bucket, Bolt Edge |
| Static Tipping Load,Full Turn | 50510.2 lb (22911 kg) |
| Breakout Force | 25000 kgf |
| Dump Clearance, @45 Degrees Dump Angle | 10.9 ft in (3295 mm) |
| Dump Reach, @45 Degrees Dump Angle | 5 ft in (1500 mm) |
| Bucket Width | 9 ft in (2740 mm) |
| Bucket Link Type | Z-bar |
Transmission
| Transmission Type | Full-power shift, planetary type |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.7 mph (34.9 km/h) |
| Max Speed - Reverse | 22.7 mph (36.5 km/h) |
Tires
| Standard Fitment Size | 29.5 R25 2Star VSDL L5 |
Weights
| Operating Weight | 77161.8 lb (35000 kg) |
Hydraulic System
| Steering Pump Type | Piston Pump |
| Loader Control Type | Piston Pump |
| Number Of Cylinders | 2 |
| Bore | 4 in (100 mm) |
| Loader Control Capacity | 84.6 gal/min (320 L/min) |
| Control Valve | 2-spool type |
| Control Positions Boom | Raise, hold, lower, and float |
| Control Positions Bucket | Tilt-back, hold, and dump |
| Hydraulic Cylinders Type | Double-acting, piston type |
| Lift Cylinder Stroke | 35.4 in (898 mm) |
| Lift Cylinder | 2 |
| Lift Cylinder Bore | 6.3 in (160 mm) |
| Bucket Cylinde Bore | 7.3 in (185 mm) |
| Bucket Cylinde Stroke | 26.6 in (675 mm) |
| Stroke | 19.2 in (486 mm) |
| Relief Valve Setting | 34.3 MPa 350 kgf/cm 2 4,980 ps |
| Pump Flow Capacity | 31.8 gal/min (120 L/min) |
| Raise Time | 7.2 sec |
| Dump Time | 1.7 sec |
| Lower Time | 4.2 sec |
Axles
| Drive System | Four-wheel drive |
| Front | Fixed, semi-floating |
| Rear | Center-pin support, semi-floating, 24 ̊ total oscillation |
Hydraulic System
| Pump Type | Piston Pump |
Final Drive
| Reduction Gear | Spiral bevel gear |
| Differential Gear | Torque proportioning |
| Final Reduction Gear | Planetary gear, single reduction |
Brakes
| Parking Brake | Wet |
| Service Brake | Hydraulically actuated |
| Emergency Brake | Parking brake is commonly used |
