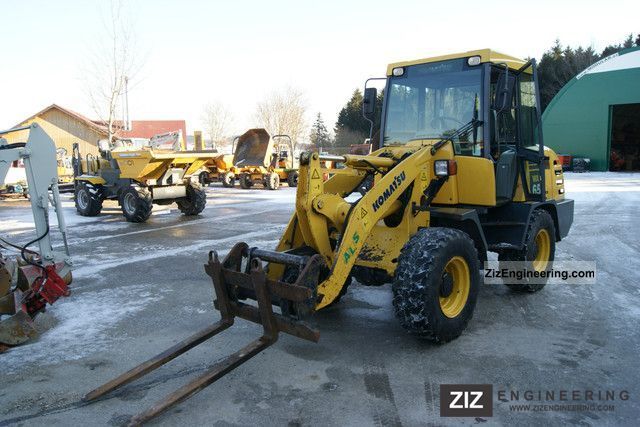

Komatsu WA65-3
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.26 ft in (2515 mm) |
| Bucket Capacity - Heaped | 0.92 yd3 (0.7 m3) |
| Bucket Width | 6.07 ft in (1850 mm) |
| Breakout Force | 8947.4 lb (39.8 kN) |
Dimensions
| Ground Clearance | 1.3 ft in (395 mm) |
| Length With Bucket On Ground | 16.79 ft in (5115 mm) |
| Height To Top Of Cab | 9.57 ft in (2915 mm) |
| Wheelbase | 6.4 ft in (1950 mm) |
| Hinge Pin - Max Height | 10.22 ft in (3115 mm) |
| Reach At Max Lift And Dump | 2.56 ft in (780 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D 94E |
| Net Power | 50 hp (37 kw) |
| Max Torque | 121.7 lb ft (165 Nm) |
| Displacement | 169.4 cu in (2.8 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 9391.7 lb (4260 kg) |
| Fuel Capacity | 20.4 gal (77 L) |
| Hydraulic System Fluid Capacity | 18.5 gal (70 L) |
| Engine Oil Fluid Capacity | 2.5 gal (9.4 L) |
| Cooling System Fluid Capacity | 2.7 gal (10 L) |
| Front Axle/Diff Fluid Capacity | 1.7 gal (6.1 L) |
| Rear Axle/Diff Fluid Capacity | 1.8 gal (6.5 L) |
| Static Tipping Weight | 7716.2 lb (3500 kg) |
| Turning Radius | 12.2 ft in (3700 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 405/70 R18 SPT 9 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 2900.8 psi (20000 kPa) |
| Pump Flow Capacity | 14.6 gal/min (55 L/min) |
| Raise Time | 5 sec |
| Dump Time | 1 sec |
| Lower Time | 2.4 sec |
| Pump Type | Closed Hydraulic System |
