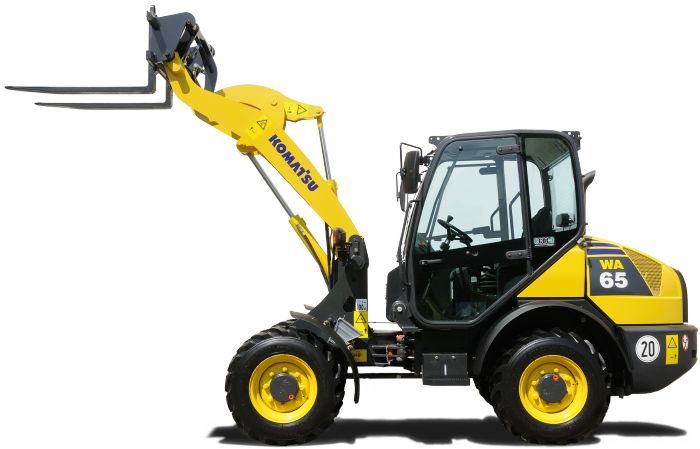

Komatsu WA65-6
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 7.98 ft in (2430 mm) |
| Bucket Width | 5.45 ft in (1660 mm) |
| Bucket Capacity - Heaped | 0.92 yd3 (0.7 m3) |
Dimensions
| Ground Clearance | 0.92 ft in (280 mm) |
| Length With Bucket On Ground | 17.8 ft in (5425 mm) |
| Width Over Tires | 5.34 ft in (1625 mm) |
| Height To Top Of Cab | 8.04 ft in (2450 mm) |
| Wheelbase | 6.73 ft in (2050 mm) |
| Hinge Pin - Max Height | 10.22 ft in (3115 mm) |
| Reach At Max Lift And Dump | 3.17 ft in (965 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D95LWE-5 |
| Net Power | 53.7 hp (40 kw) |
| Power Measured @ | 2350 rpm |
| Max Torque | 140.2 lb ft (190 Nm) |
| Displacement | 201.4 cu in (3.3 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 10273.6 lb (4660 kg) |
| Fuel Capacity | 34.9 gal (132 L) |
| Hydraulic System Fluid Capacity | 13.3 gal (50 L) |
| Engine Oil Fluid Capacity | 2 gal (7.5 L) |
| Cooling System Fluid Capacity | 2.5 gal (9.1 L) |
| Front Axle/Diff Fluid Capacity | 2.3 gal (8.4 L) |
| Rear Axle/Diff Fluid Capacity | 2.3 gal (8.4 L) |
| Static Tipping Weight | 8046.9 lb (3650 kg) |
| Turning Radius | 13.5 ft in (4095 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Rear Axle Oscillation | 10 degrees |
| Tire Size | 12.0-18 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 2900.8 psi (20000 kPa) |
| Pump Flow Capacity | 14.1 gal/min (53 L/min) |
| Raise Time | 5.3 sec |
| Dump Time | 1.1 sec |
| Lower Time | 3 sec |
