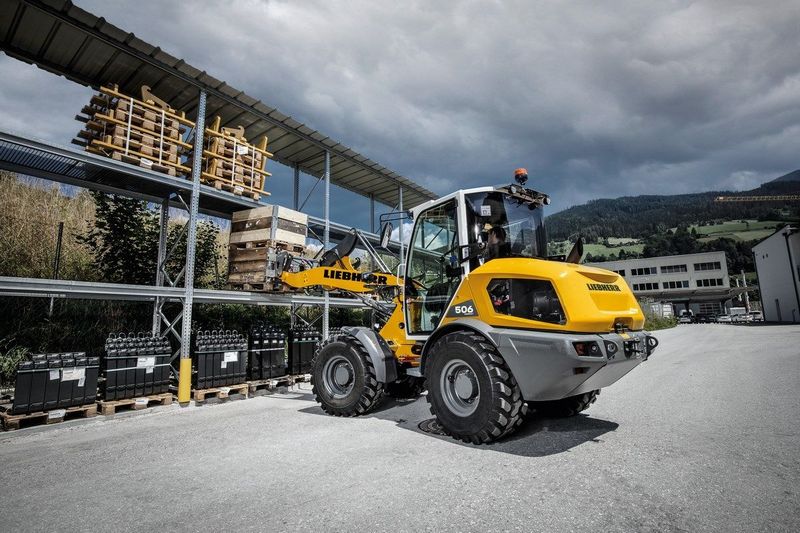

Liebherr L506ST
Browse All Liebherr or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.14 ft in (2480 mm) |
| Bucket Width | 5.91 ft in (1800 mm) |
| Bucket Capacity - Heaped | 1.05 yd3 (0.8 m3) |
Dimensions
| Ground Clearance | 0.99 ft in (300 mm) |
| Length With Bucket On Ground | 17.08 ft in (5205 mm) |
| Width Over Tires | 5.81 ft in (1770 mm) |
| Height To Top Of Cab | 8.76 ft in (2670 mm) |
| Wheelbase | 7.06 ft in (2150 mm) |
| Reach At Max Lift And Dump | 2.76 ft in (840 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2245 |
| Engine Model | D404T |
| Net Power | 56.4 hp (42 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 148.9 cu in (2.5 L) |
Operational
| Operating Weight | 11287.7 lb (5120 kg) |
| Static Tipping Weight | 7123.2 lb (3231 kg) |
| Turning Radius | 6.1 ft in (1845 mm) |
| Tire Size | 365/70R18 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
