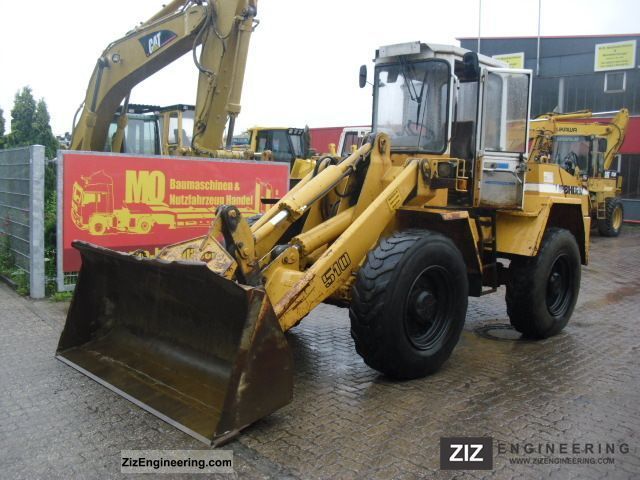

Liebherr L510ST
Browse All Liebherr or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.78 ft in (2676 mm) |
| Bucket Width | 7.65 ft in (2330 mm) |
| Bucket Capacity - Heaped | 1.57 yd3 (1.2 m3) |
Dimensions
| Ground Clearance | 1.22 ft in (370 mm) |
| Length With Bucket On Ground | 18.9 ft in (5760 mm) |
| Width Over Tires | 7.32 ft in (2230 mm) |
| Height To Top Of Cab | 9.14 ft in (2785 mm) |
| Wheelbase | 7.55 ft in (2300 mm) |
| Reach At Max Lift And Dump | 2.87 ft in (874 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2245 |
| Engine Model | D405T |
| Net Power | 77.8 hp (58 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 164.8 cu in (2.7 L) |
Operational
| Operating Weight | 13778.9 lb (6250 kg) |
| Static Tipping Weight | 10099.4 lb (4581 kg) |
| Turning Radius | 6.9 ft in (2095 mm) |
| Tire Size | 405/70R20 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
