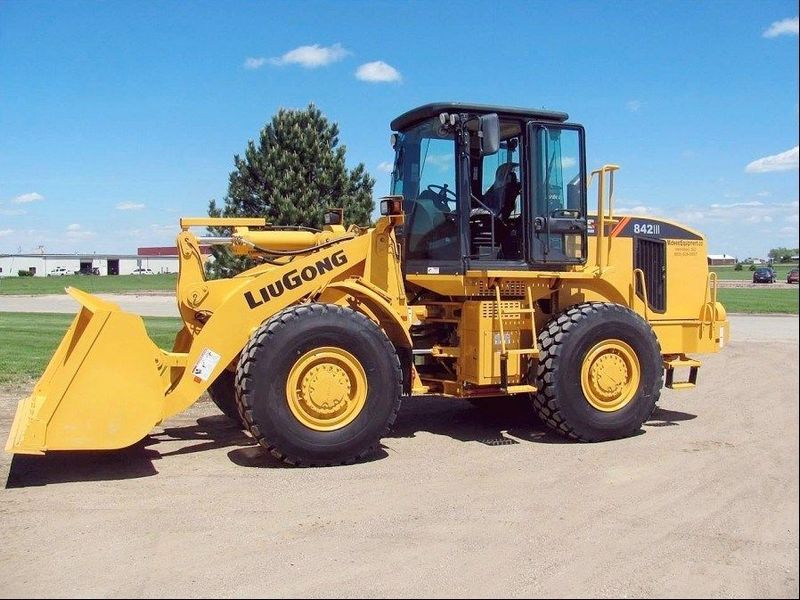

LiuGong CLG842
Browse All LiuGong or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.52 ft in (2900 mm) |
| Bucket Capacity - Heaped | 3.01 yd3 (2.3 m3) |
| Bucket Width | 9.08 ft in (2766 mm) |
| Breakout Force | 28101.12 lb (125 kN) |
Dimensions
| Ground Clearance | 1.35 ft in (410 mm) |
| Length With Bucket On Ground | 23.81 ft in (7257 mm) |
| Width Over Tires | 8.11 ft in (2470 mm) |
| Height To Top Of Cab | 10.99 ft in (3347 mm) |
| Wheelbase | 9.85 ft in (3000 mm) |
| Reach At Max Lift And Dump | 3.4 ft in (1034 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | B5.9-C |
| Net Power | 147.6 hp (110 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 360.1 cu in (5.9 L) |
Operational
| Operating Weight | 30203.4 lb (13700 kg) |
| Static Tipping Weight | 17637 lb (8000 kg) |
| Turning Radius | 20.6 ft in (6250 mm) |
| Tire Size | 20.5-25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23 mph (37 km/h) |
| Max Speed - Reverse | 14.3 mph (23 km/h) |
Hydraulic System
| Pump Type | Gear |
