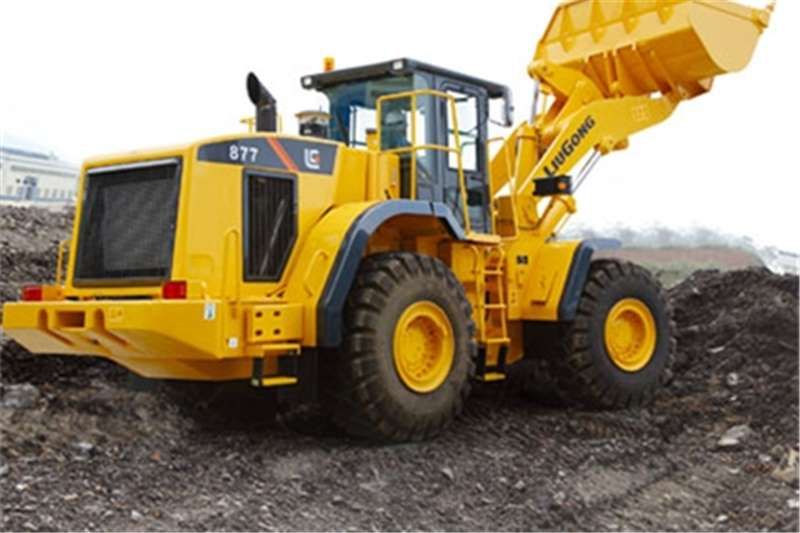

LiuGong CLG877 III
Browse All LiuGong or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.5 ft in (3200 mm) |
| Bucket Width | 10.34 ft in (3150 mm) |
| Bucket Capacity - Heaped | 5.24 yd3 (4 m3) |
Dimensions
| Ground Clearance | 1.51 ft in (458 mm) |
| Length With Bucket On Ground | 29.78 ft in (9075 mm) |
| Width Over Tires | 9.6 ft in (2926 mm) |
| Height To Top Of Cab | 11.75 ft in (3580 mm) |
| Wheelbase | 11.32 ft in (3450 mm) |
| Reach At Max Lift And Dump | 4.27 ft in (1300 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSM11-C290 |
| Net Power | 260.2 hp (194 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 659.1 cu in (10.8 L) |
Operational
| Operating Weight | 51808.7 lb (23500 kg) |
| Static Tipping Weight | 33730.8 lb (15300 kg) |
| Turning Radius | 23.9 ft in (7260 mm) |
| Tire Size | 26.5x25 |
Transmission
| Transmission Type | Power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
