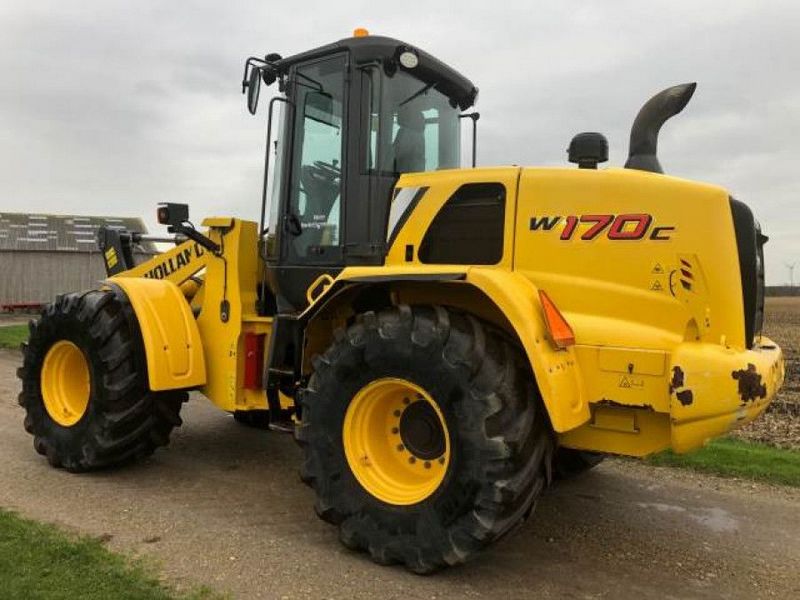

New Holland W170C
Browse All New Holland or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.62 ft in (2930 mm) |
| Bucket Capacity - Heaped | 3.54 yd3 (2.7 m3) |
| Bucket Width | 8.96 ft in (2730 mm) |
| Breakout Force | 31385.01 lb (139.61 kN) |
Dimensions
| Ground Clearance | 1.28 ft in (390 mm) |
| Length With Bucket On Ground | 25.1 ft in (7650 mm) |
| Width Over Tires | 8.7 ft in (2650 mm) |
| Height To Top Of Cab | 11.09 ft in (3380 mm) |
| Wheelbase | 10.67 ft in (3250 mm) |
| Hinge Pin - Max Height | 13.06 ft in (3980 mm) |
| Reach At Max Lift And Dump | 3.71 ft in (1130 mm) |
Engine
| Number Of Cylinders | 6 |
| Max Torque Iso Tr14396 | 700.7 lb ft (950 Nm) |
| Def/Adblue® Tank Capacity | 11 gal (41.3 L) |
| Gross Power | 195 hp (145.5 kw) |
| Power Measured @ | 1800 rpm |
| Torque Measured @ | 1300 rpm |
Operational
| Fuel Capacity | 65 gal (246 L) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Engine Oil Fluid Capacity | 4 gal (15 L) |
| Transmission Fluid Capacity | 9 gal (34 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 65 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 23,5R25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23 mph (37 km/h) |
| Max Speed - Reverse | 16.2 mph (26 km/h) |
Hydraulic System
| Pump Flow Capacity | 54.5 gal/min (206 L/min) |
| Raise Time | 5.2 sec |
| Dump Time | 1.2 sec |
| Lower Time | 2.5 sec |
| Pump Type | Tandem Variable |
