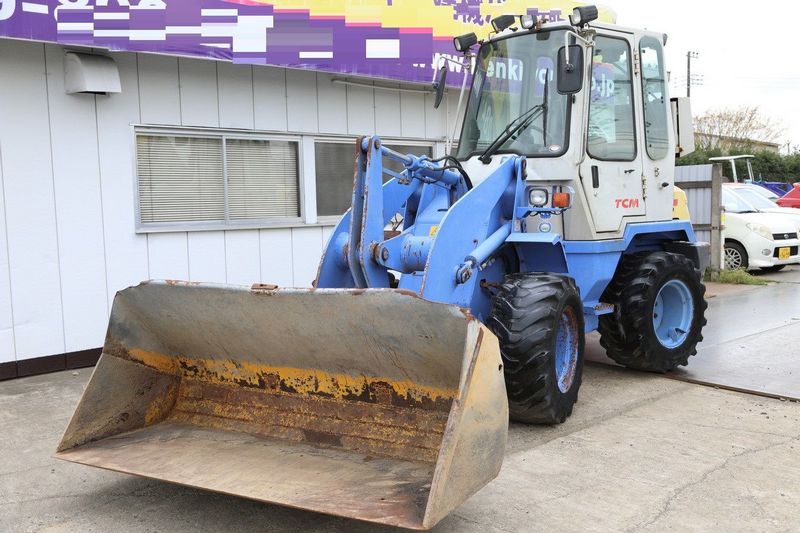

TCM L6-2
Browse All TCM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.21 ft in (2500 mm) |
| Breakout Force | _ - (33.4 kN) |
| Bucket Capacity - Heaped | 0.79 yd3 (0.6 m3) |
| Bucket Width | 5.55 ft in (1690 mm) |
Dimensions
| Ground Clearance | 0.94 ft in (285 mm) |
| Length With Bucket On Ground | 15.41 ft in (4695 mm) |
| Height To Top Of Cab | 8.19 ft in (2495 mm) |
| Wheelbase | 6.24 ft in (1900 mm) |
| Reach At Max Lift And Dump | 3.01 ft in (915 mm) |
Engine
| Engine Make | 2334 |
| Engine Model | D1503-DI-K2A |
| Net Power | 36.5 hp (27.2 kw) |
Operational
| Operating Weight | 7859.5 lb (3565 kg) |
| Fuel Capacity | 13.3 gal (50 L) |
| Static Tipping Weight | 4232.9 lb (1920 kg) |
| Tire Size | 15.5/20- 10 PR L2 |
Transmission
| Transmission Type | powershift |
| Max Speed - Forward | 9.4 mph (15 km/h) |
| Max Speed - Reverse | 9.4 mph (15 km/h) |
