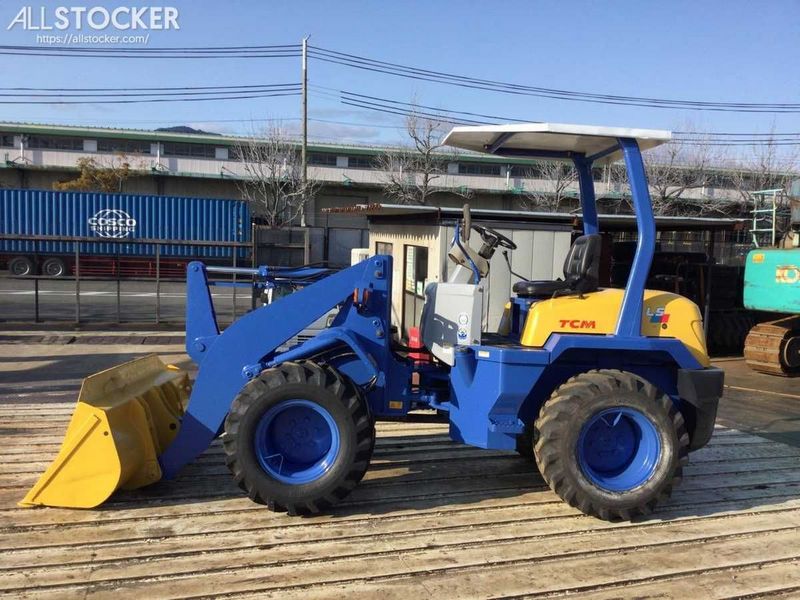

TCM L5-2
Browse All TCM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.03 ft in (2445 mm) |
| Breakout Force | _ - (35.8 kN) |
| Bucket Capacity - Heaped | 0.66 yd3 (0.5 m3) |
| Bucket Width | 5.55 ft in (1690 mm) |
Dimensions
| Ground Clearance | 0.97 ft in (295 mm) |
| Length With Bucket On Ground | 14.52 ft in (4425 mm) |
| Height To Top Of Cab | 8.19 ft in (2495 mm) |
| Wheelbase | 6.24 ft in (1900 mm) |
| Reach At Max Lift And Dump | 2.78 ft in (845 mm) |
Engine
| Engine Make | 2334 |
| Engine Model | D1503-DI-T-K2A |
| Net Power | 36.5 hp (27.2 kw) |
Operational
| Operating Weight | 7198.1 lb (3265 kg) |
| Fuel Capacity | 13.3 gal (50 L) |
| Static Tipping Weight | 4541.6 lb (2060 kg) |
| Tire Size | 15.5/60 18-8 PR L2 |
Transmission
| Transmission Type | powershift |
| Max Speed - Forward | 9.4 mph (15 km/h) |
| Max Speed - Reverse | 9.4 mph (15 km/h) |
